本文讲述基于 golang 的后台管理脚手架 go-admin 的使用步骤。
# 1. 后台
# 1.1 下载工程代码
git clone https://github.com/go-admin-team/go-admin.git# 1.2 创建数据库
create database site_container default CHARSET utf8mb4 collate utf8mb4_general_ci;
# 1.3 创建配置文件
cp config/settings.yml config/settings.dev.yml修改配置文件
database:
# 数据库类型 mysql，sqlite3， postgres
driver: mysql
# 数据库连接字符串 mysql 缺省信息 charset=utf8&parseTime=True&loc=Local&timeout=1000ms
source: root:123456@tcp(127.0.0.1:3306)/site_container?charset=utf8&parseTime=True&loc=Local&timeout=1000ms
gen:
# 代码生成读取的数据库名称
dbname: site_container
# 代码生成是使用前端代码存放位置，需要指定到src文件夹，相对路径
frontpath: ../go-admin-ui/src
# 1.4 运行
# 1.4.1 编译
go build -o ./go-admingo build -o ./go-admin
# 1.4.2 初始化数据库数据
./go-admin migrate -c=config/settings.dev.yml
注意: 该初始化操作一共依赖2个文件: config/settings.dev.yml和config/db.sql。 所以，若是部署到生产环境，初始化时不要丢掉config/db.sql文件。
# 1.4.3 运行
./go-admin server -c=config/settings.dev.yml(py3.6) wangshibiao@wangshibiao:/data/workspace/wangshibiao/go-admin/go-admin$ ./go-admin server -c=config/settings.dev.yml
warning config not found settings.ssl in the configuration
2020-12-04 16:34:05.431 [INFO] Logger init success!
2020-12-04 16:34:05.432 [INFO] mysql_drive.go:25: root:123456@tcp(127.0.0.1:3306)/site_container?charset=utf8&parseTime=True&loc=Local&timeout=1000ms
2020-12-04 16:34:05.433 [INFO] mysql_drive.go:42: mysql connect success !
2020-12-04 16:34:05.435 [INFO] server.go:67: starting api server
[GIN-debug] [WARNING] Running in "debug" mode. Switch to "release" mode in production.
- using env: export GIN_MODE=release
- using code: gin.SetMode(gin.ReleaseMode)
[GIN-debug] [WARNING] Running in "debug" mode. Switch to "release" mode in production.
- using env: export GIN_MODE=release
- using code: gin.SetMode(gin.ReleaseMode)
[GIN-debug] GET / --> go-admin/app/admin/apis/system.HelloWorld (7 handlers)
[GIN-debug] GET /info --> go-admin/app/admin/middleware/handler.Ping (7 handlers)
[GIN-debug] GET /static/*filepath --> github.com/gin-gonic/gin.(*RouterGroup).createStaticHandler.func1 (7 handlers)
[GIN-debug] HEAD /static/*filepath --> github.com/gin-gonic/gin.(*RouterGroup).createStaticHandler.func1 (7 handlers)
[GIN-debug] GET /form-generator/*filepath --> github.com/gin-gonic/gin.(*RouterGroup).createStaticHandler.func1 (7 handlers)
[GIN-debug] HEAD /form-generator/*filepath --> github.com/gin-gonic/gin.(*RouterGroup).createStaticHandler.func1 (7 handlers)
[GIN-debug] GET /swagger/*any --> github.com/swaggo/gin-swagger.CustomWrapHandler.func1 (7 handlers)
[GIN-debug] GET /api/v1/monitor/server --> go-admin/app/admin/apis/monitor.ServerInfo (7 handlers)
[GIN-debug] GET /api/v1/getCaptcha --> go-admin/app/admin/apis/system.GenerateCaptchaHandler (7 handlers)
[GIN-debug] GET /api/v1/gen/preview/:tableId --> go-admin/app/admin/apis/tools.Preview (7 handlers)
[GIN-debug] GET /api/v1/gen/toproject/:tableId --> go-admin/app/admin/apis/tools.GenCodeV3 (7 handlers)
[GIN-debug] GET /api/v1/gen/todb/:tableId --> go-admin/app/admin/apis/tools.GenMenuAndApi (7 handlers)
[GIN-debug] GET /api/v1/gen/tabletree --> go-admin/app/admin/apis/tools.GetSysTablesTree (7 handlers)
[GIN-debug] GET /api/v1/menuTreeselect --> go-admin/app/admin/apis/system.GetMenuTreeelect (7 handlers)
[GIN-debug] GET /api/v1/dict/databytype/:dictType --> go-admin/app/admin/apis/system/dict.GetDictDataByDictType (7 handlers)
[GIN-debug] GET /api/v1/db/tables/page --> go-admin/app/admin/apis/tools.GetDBTableList (7 handlers)
[GIN-debug] GET /api/v1/db/columns/page --> go-admin/app/admin/apis/tools.GetDBColumnList (7 handlers)
[GIN-debug] GET /api/v1/sys/tables/page --> go-admin/app/admin/apis/tools.GetSysTableList (7 handlers)
[GIN-debug] POST /api/v1/sys/tables/info --> go-admin/app/admin/apis/tools.InsertSysTable (7 handlers)
[GIN-debug] PUT /api/v1/sys/tables/info --> go-admin/app/admin/apis/tools.UpdateSysTable (7 handlers)
[GIN-debug] DELETE /api/v1/sys/tables/info/:tableId --> go-admin/app/admin/apis/tools.DeleteSysTables (7 handlers)
[GIN-debug] GET /api/v1/sys/tables/info/:tableId --> go-admin/app/admin/apis/tools.GetSysTables (7 handlers)
[GIN-debug] GET /api/v1/sys/tables/info --> go-admin/app/admin/apis/tools.GetSysTablesInfo (7 handlers)
[GIN-debug] POST /api/v1/public/uploadFile --> go-admin/app/admin/apis/public.UploadFile (7 handlers)
[GIN-debug] GET /api/v1/setting --> go-admin/app/admin/apis/system.GetSetting (7 handlers)
[GIN-debug] POST /api/v1/setting --> go-admin/app/admin/apis/system.CreateSetting (7 handlers)
[GIN-debug] GET /api/v1/setting/serverInfo --> go-admin/app/admin/apis/monitor.ServerInfo (7 handlers)
[GIN-debug] POST /login --> go-admin/pkg/jwtauth.(*GinJWTMiddleware).LoginHandler-fm (7 handlers)
[GIN-debug] GET /refresh_token --> go-admin/pkg/jwtauth.(*GinJWTMiddleware).RefreshHandler-fm (7 handlers)
[GIN-debug] GET /ws/:id/:channel --> go-admin/pkg/ws.(*Manager).WsClient-fm (8 handlers)
[GIN-debug] GET /wslogout/:id/:channel --> go-admin/pkg/ws.(*Manager).UnWsClient-fm (8 handlers)
[GIN-debug] GET /api/v1/deptList --> go-admin/app/admin/apis/system.GetDeptList (9 handlers)
[GIN-debug] GET /api/v1/deptTree --> go-admin/app/admin/apis/system.GetDeptTree (9 handlers)
[GIN-debug] GET /api/v1/sysUserList --> go-admin/app/admin/apis/system.GetSysUserList (9 handlers)
[GIN-debug] GET /api/v1/rolelist --> go-admin/app/admin/apis/system.GetRoleList (9 handlers)
[GIN-debug] GET /api/v1/configList --> go-admin/app/admin/apis/system.GetConfigList (9 handlers)
[GIN-debug] GET /api/v1/postlist --> go-admin/app/admin/apis/system.GetPostList (9 handlers)
[GIN-debug] GET /api/v1/menulist --> go-admin/app/admin/apis/system.GetMenuList (9 handlers)
[GIN-debug] GET /api/v1/loginloglist --> go-admin/app/admin/apis/log.GetLoginLogList (9 handlers)
[GIN-debug] GET /api/v1/getinfo --> go-admin/app/admin/apis/system.GetInfo (9 handlers)
[GIN-debug] GET /api/v1/menurole --> go-admin/app/admin/apis/system.GetMenuRole (9 handlers)
[GIN-debug] PUT /api/v1/roledatascope --> go-admin/app/admin/apis/system.UpdateRoleDataScope (9 handlers)
[GIN-debug] GET /api/v1/roleMenuTreeselect/:roleId --> go-admin/app/admin/apis/system.GetMenuTreeRoleselect (9 handlers)
[GIN-debug] GET /api/v1/roleDeptTreeselect/:roleId --> go-admin/app/admin/apis/system.GetDeptTreeRoleselect (9 handlers)
[GIN-debug] POST /api/v1/logout --> go-admin/app/admin/middleware/handler.LogOut (9 handlers)
[GIN-debug] GET /api/v1/menuids --> go-admin/app/admin/apis/system.GetMenuIDS (9 handlers)
[GIN-debug] GET /api/v1/operloglist --> go-admin/app/admin/apis/log.GetOperLogList (9 handlers)
[GIN-debug] GET /api/v1/configKey/:configKey --> go-admin/app/admin/apis/system.GetConfigByConfigKey (9 handlers)
[GIN-debug] GET /api/v1/dept/:deptId --> go-admin/app/admin/apis/system.GetDept (9 handlers)
[GIN-debug] POST /api/v1/dept --> go-admin/app/admin/apis/system.InsertDept (9 handlers)
[GIN-debug] PUT /api/v1/dept --> go-admin/app/admin/apis/system.UpdateDept (9 handlers)
[GIN-debug] DELETE /api/v1/dept/:id --> go-admin/app/admin/apis/system.DeleteDept (9 handlers)
[GIN-debug] GET /api/v1/dict/datalist --> go-admin/app/admin/apis/system/dict.GetDictDataList (9 handlers)
[GIN-debug] GET /api/v1/dict/typelist --> go-admin/app/admin/apis/system/dict.GetDictTypeList (9 handlers)
[GIN-debug] GET /api/v1/dict/typeoptionselect --> go-admin/app/admin/apis/system/dict.GetDictTypeOptionSelect (9 handlers)
[GIN-debug] GET /api/v1/dict/data/:dictCode --> go-admin/app/admin/apis/system/dict.GetDictData (9 handlers)
[GIN-debug] POST /api/v1/dict/data --> go-admin/app/admin/apis/system/dict.InsertDictData (9 handlers)
[GIN-debug] PUT /api/v1/dict/data/ --> go-admin/app/admin/apis/system/dict.UpdateDictData (9 handlers)
[GIN-debug] DELETE /api/v1/dict/data/:dictCode --> go-admin/app/admin/apis/system/dict.DeleteDictData (9 handlers)
[GIN-debug] GET /api/v1/dict/type/:dictId --> go-admin/app/admin/apis/system/dict.GetDictType (9 handlers)
[GIN-debug] POST /api/v1/dict/type --> go-admin/app/admin/apis/system/dict.InsertDictType (9 handlers)
[GIN-debug] PUT /api/v1/dict/type --> go-admin/app/admin/apis/system/dict.UpdateDictType (9 handlers)
[GIN-debug] DELETE /api/v1/dict/type/:dictId --> go-admin/app/admin/apis/system/dict.DeleteDictType (9 handlers)
[GIN-debug] GET /api/v1/sysUser/:userId --> go-admin/app/admin/apis/system.GetSysUser (9 handlers)
[GIN-debug] GET /api/v1/sysUser/ --> go-admin/app/admin/apis/system.GetSysUserInit (9 handlers)
[GIN-debug] POST /api/v1/sysUser --> go-admin/app/admin/apis/system.InsertSysUser (9 handlers)
[GIN-debug] PUT /api/v1/sysUser --> go-admin/app/admin/apis/system.UpdateSysUser (9 handlers)
[GIN-debug] DELETE /api/v1/sysUser/:userId --> go-admin/app/admin/apis/system.DeleteSysUser (9 handlers)
[GIN-debug] GET /api/v1/role/:roleId --> go-admin/app/admin/apis/system.GetRole (9 handlers)
[GIN-debug] POST /api/v1/role --> go-admin/app/admin/apis/system.InsertRole (9 handlers)
[GIN-debug] PUT /api/v1/role --> go-admin/app/admin/apis/system.UpdateRole (9 handlers)
[GIN-debug] DELETE /api/v1/role/:roleId --> go-admin/app/admin/apis/system.DeleteRole (9 handlers)
[GIN-debug] GET /api/v1/config/:configId --> go-admin/app/admin/apis/system.GetConfig (9 handlers)
[GIN-debug] POST /api/v1/config --> go-admin/app/admin/apis/system.InsertConfig (9 handlers)
[GIN-debug] PUT /api/v1/config --> go-admin/app/admin/apis/system.UpdateConfig (9 handlers)
[GIN-debug] DELETE /api/v1/config/:configId --> go-admin/app/admin/apis/system.DeleteConfig (9 handlers)
[GIN-debug] GET /api/v1/user/profile --> go-admin/app/admin/apis/system.GetSysUserProfile (9 handlers)
[GIN-debug] POST /api/v1/user/avatar --> go-admin/app/admin/apis/system.InsetSysUserAvatar (9 handlers)
[GIN-debug] PUT /api/v1/user/pwd --> go-admin/app/admin/apis/system.SysUserUpdatePwd (9 handlers)
[GIN-debug] GET /api/v1/post/:postId --> go-admin/app/admin/apis/system.GetPost (9 handlers)
[GIN-debug] POST /api/v1/post --> go-admin/app/admin/apis/system.InsertPost (9 handlers)
[GIN-debug] PUT /api/v1/post --> go-admin/app/admin/apis/system.UpdatePost (9 handlers)
[GIN-debug] DELETE /api/v1/post/:postId --> go-admin/app/admin/apis/system.DeletePost (9 handlers)
[GIN-debug] GET /api/v1/menu/:id --> go-admin/app/admin/apis/system.GetMenu (9 handlers)
[GIN-debug] POST /api/v1/menu --> go-admin/app/admin/apis/system.InsertMenu (9 handlers)
[GIN-debug] PUT /api/v1/menu --> go-admin/app/admin/apis/system.UpdateMenu (9 handlers)
[GIN-debug] DELETE /api/v1/menu/:id --> go-admin/app/admin/apis/system.DeleteMenu (9 handlers)
[GIN-debug] GET /api/v1/loginlog/:infoId --> go-admin/app/admin/apis/log.GetLoginLog (9 handlers)
[GIN-debug] POST /api/v1/loginlog --> go-admin/app/admin/apis/log.InsertLoginLog (9 handlers)
[GIN-debug] PUT /api/v1/loginlog --> go-admin/app/admin/apis/log.UpdateLoginLog (9 handlers)
[GIN-debug] DELETE /api/v1/loginlog/:infoId --> go-admin/app/admin/apis/log.DeleteLoginLog (9 handlers)
[GIN-debug] GET /api/v1/operlog/:operId --> go-admin/app/admin/apis/log.GetOperLog (9 handlers)
[GIN-debug] DELETE /api/v1/operlog/:operId --> go-admin/app/admin/apis/log.DeleteOperLog (9 handlers)
[GIN-debug] GET /api/v1/nilcheckrole --> (7 handlers)
[GIN-debug] GET /api/v1/sysfileinfoList --> go-admin/app/admin/apis/sysfileinfo.GetSysFileInfoList (7 handlers)
[GIN-debug] GET /api/v1/sysfileinfo/:id --> go-admin/app/admin/apis/sysfileinfo.GetSysFileInfo (7 handlers)
[GIN-debug] POST /api/v1/sysfileinfo --> go-admin/app/admin/apis/sysfileinfo.InsertSysFileInfo (7 handlers)
[GIN-debug] PUT /api/v1/sysfileinfo --> go-admin/app/admin/apis/sysfileinfo.UpdateSysFileInfo (7 handlers)
[GIN-debug] DELETE /api/v1/sysfileinfo/:id --> go-admin/app/admin/apis/sysfileinfo.DeleteSysFileInfo (7 handlers)
[GIN-debug] GET /api/v1/sysfiledirList --> go-admin/app/admin/apis/sysfiledir.GetSysFileDirList (7 handlers)
[GIN-debug] GET /api/v1/sysfiledir/:id --> go-admin/app/admin/apis/sysfiledir.GetSysFileDir (7 handlers)
[GIN-debug] POST /api/v1/sysfiledir --> go-admin/app/admin/apis/sysfiledir.InsertSysFileDir (7 handlers)
[GIN-debug] PUT /api/v1/sysfiledir --> go-admin/app/admin/apis/sysfiledir.UpdateSysFileDir (7 handlers)
[GIN-debug] DELETE /api/v1/sysfiledir/:id --> go-admin/app/admin/apis/sysfiledir.DeleteSysFileDir (7 handlers)
[GIN-debug] GET /api/v1/checkrole --> (7 handlers)
[GIN-debug] GET /api/v1/sysjob --> go-admin/common/actions.IndexAction.func1 (10 handlers)
[GIN-debug] GET /api/v1/sysjob/:id --> go-admin/common/actions.ViewAction.func1 (10 handlers)
[GIN-debug] POST /api/v1/sysjob --> go-admin/common/actions.CreateAction.func1 (9 handlers)
[GIN-debug] PUT /api/v1/sysjob --> go-admin/common/actions.UpdateAction.func1 (10 handlers)
[GIN-debug] DELETE /api/v1/sysjob --> go-admin/common/actions.DeleteAction.func1 (10 handlers)
[GIN-debug] GET /api/v1/job/remove/:id --> go-admin/app/admin/apis/sysjob.(*SysJob).RemoveJobForService-fm (7 handlers)
[GIN-debug] GET /api/v1/job/start/:id --> go-admin/app/admin/apis/sysjob.(*SysJob).StartJobForService-fm (7 handlers)
[GIN-debug] GET /api/v1/syscontent/:id --> go-admin/app/admin/apis/syscontent.GetSysContent (9 handlers)
[GIN-debug] POST /api/v1/syscontent --> go-admin/app/admin/apis/syscontent.InsertSysContent (9 handlers)
[GIN-debug] PUT /api/v1/syscontent --> go-admin/app/admin/apis/syscontent.UpdateSysContent (9 handlers)
[GIN-debug] DELETE /api/v1/syscontent/:id --> go-admin/app/admin/apis/syscontent.DeleteSysContent (9 handlers)
[GIN-debug] GET /api/v1/syscontentList --> go-admin/app/admin/apis/syscontent.GetSysContentList (9 handlers)
[GIN-debug] GET /api/v1/syscategory/:id --> go-admin/app/admin/apis/syscategory.GetSysCategory (9 handlers)
[GIN-debug] POST /api/v1/syscategory --> go-admin/app/admin/apis/syscategory.InsertSysCategory (9 handlers)
[GIN-debug] PUT /api/v1/syscategory --> go-admin/app/admin/apis/syscategory.UpdateSysCategory (9 handlers)
[GIN-debug] DELETE /api/v1/syscategory/:id --> go-admin/app/admin/apis/syscategory.DeleteSysCategory (9 handlers)
[GIN-debug] GET /api/v1/syscategoryList --> go-admin/app/admin/apis/syscategory.GetSysCategoryList (9 handlers)
____
,---, ,' , `. ,--,
,---. ,---,. ,---.'| ,-+-,.' _ |,--.'| ,---,
,----._,. ' ,'\ ,' .' | | | : ,-+-. ; , ||| |, ,-+-. / |
/ / ' / / / |,---.' , ,--.--. | | | ,--.'|' | ||`--'_ ,--.'|' |
| : |. ; ,. :| | |/ \ ,--.__| || | ,', | |,,' ,'| | | ,"' |
| | .\ .' | |: :: : .'.--. .-. | / ,' || | / | |--' ' | | | | / | |
. ; '; |' | .; :: |.' \__\/: . .. ' / || : | | , | | : | | | | |
' . . || : |`---' ," .--.; |' ; |: || : | |/ ' : |__ | | | |/
`---`-'| | \ \ / / / ,. || | '/ '| | |`-' | | '.'|| | |--'
.'__/\_: | `----' ; : .' \ : :|| ;/ ; : ;| |/
| : : | , .-./\ \ / '---' | , / '---'
\ \ / `--`---' `----' ---`-'
`--`-'
欢迎使用 go-admin 1.2.0 可以使用 -h 查看命令
Server run at:
- Local: http://localhost:8000/
2020/12/04 16:34:05 websocket manage start
2020-12-04 16:34:05 [INFO] JobCore Starting...
- Network: http://172.16.10.199:8000/
Swagger run at:
- Local: http://localhost:8000/swagger/index.html
- Network: http://172.16.10.199:8000/swagger/index.html
2020-12-04 16:34:05 Enter Control + C Shutdown Server
2020-12-04 16:34:05 [INFO] JobCore total:0
2020-12-04 16:34:05 [INFO] JobCore start success.
# 1.4.4 debug调试
若想借助vscode debug调试， 则参考如下运行配置:
# 1.5 访问接口文档
http://localhost:8000/swagger/index.html# 2. 前端页面
# 2.1 下载工程代码
git clone https://github.com/go-admin-team/go-admin-ui.git
# 2.2 安装依赖
npm installnpm install
node v15.0.1# 2.3 运行
npm run dev
npm install @vue/babel-preset-app --save-dev ERROR Error: Cannot find module '@vue/babel-preset-app' from '/data/workspace/wangshibiao/go-admin/go-admin-ui'
然后重新重试，运行成功。
(py3.6) wangshibiao@wangshibiao:/data/workspace/wangshibiao/go-admin/go-admin-ui$ npm run dev
> go-admin@1.2.0 dev
> vue-cli-service serve
INFO Starting development server...
98% after emitting CopyPlugin
DONE Compiled successfully in 38597ms 下午5:33:56
App running at:
- Local: http://localhost:9527/
- Network: http://172.16.10.199:9527/
Note that the development build is not optimized.
To create a production build, run yarn build.
# 2.4 访问页面

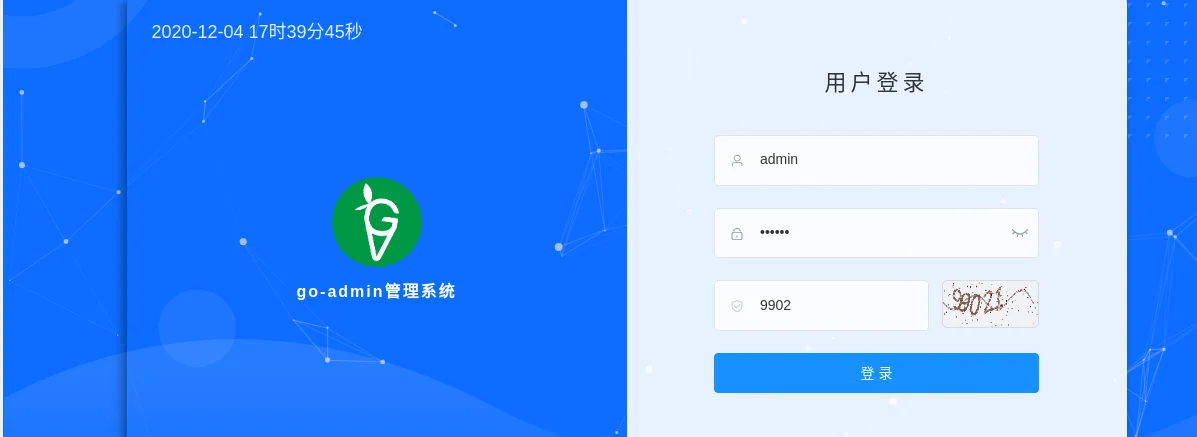

浏览器访问http://localhost:9527/, 界面如下:

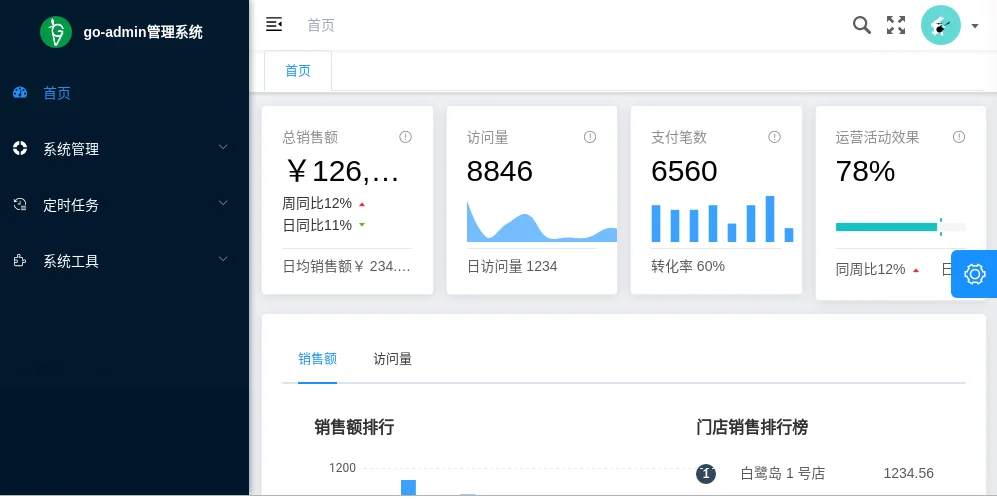

主页面如下:
# 3. 自动生成代码
# 3.1 创建数据库表
使用sql语句手动创建数据库表。
# 3.2 导入数据库表
通过后台的导入功能，导入创建的数据库表。
# 3.3 修改表的相关信息
表单创建、修改、查询表单表单的每一项都可以选择要渲染的样式，比如性别字段可以渲染为单选框，以性别单选框为例，讲解配置步骤:
性别显示类型单选框字典类型性别字段信息字段描述生成信息指定应用名adminadmin可以设置表单的"选填"或"必填"项。但是注意的是，最终渲染的必填项并不是以“必填”列为准，而是以“查询”列为准，是系统bug。
# 3.4 生成代码
使用后台的生成代码功能，生成前端和后台代码。前端和后台代码会自动生成到2个工程项目的对应目录中。
生成完代码后，需要重启后台服务。
# 3.5 生成菜单配置和权限配置节点
点击代码生成功能的“配置生成”按钮即可。
刷新页面，发现左侧多了一个菜单。查看接口文档，发现多了对应了接口定义。(前提是以admin账号登录)
# 3.6 权限配置
为角色配置如下几个权限: 名为"必开接口"的权限、 "要分配的菜单权限"、"要分配的api权限"。
为用户分配该角色
# 4. 总结
- 目前发现go-admin脚手架存在的不足: 表单生成的"选填"功能不生效
- 自动生成的curd接口，update接口考虑不足，仅支持非空字段的修改，即不支持对某个字段置空。
- 可选的替换方案为gfast脚手架基于golang的后台管理脚手架gofast的使用步骤，是基于goframe和ruoyi框架开发。
