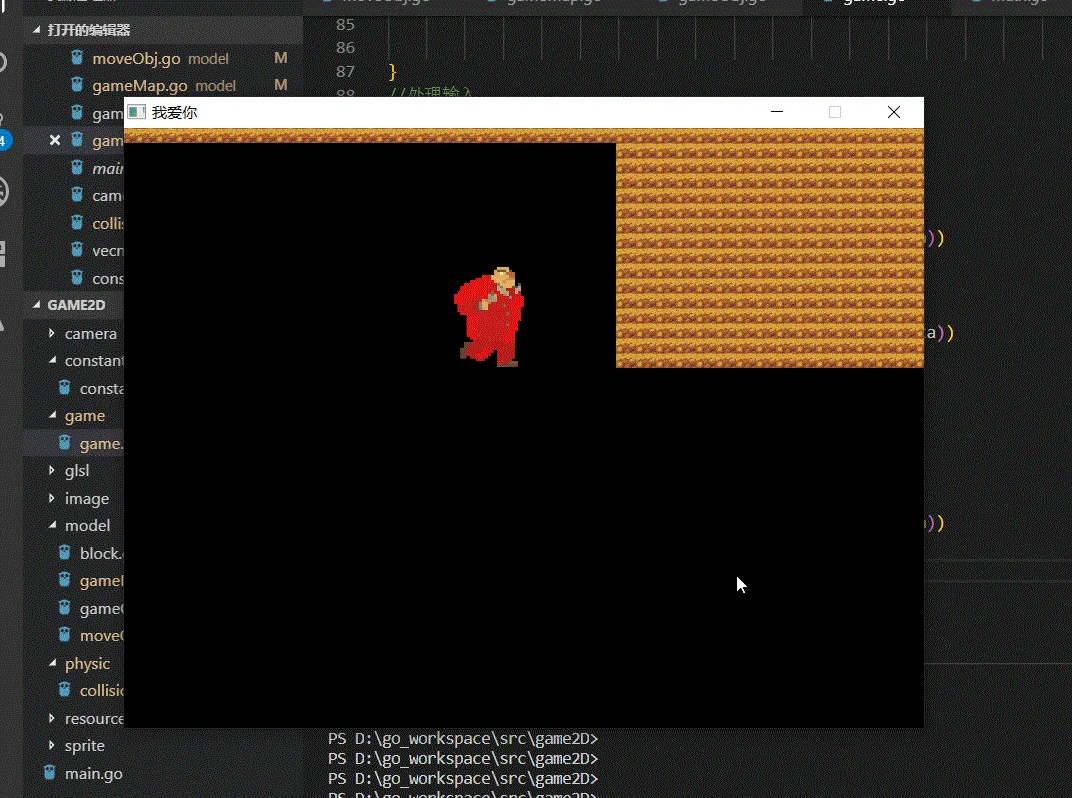

此文写在golang游戏开发学习笔记-创建一个能自由探索的3D世界之后,感兴趣可以先去那篇文章了解一些基础知识，在这篇文章里我们要创建一个简单的2D游戏场景以及配套的人物，并实现人物运动和碰撞检测功能，效果如下
一.参考资料
C++二.基础概念
这里涉及到的概念在之前的文章里基本上都有过介绍，不再赘述。不过大家有兴趣可以去看一看碰撞检测的一些算法实现
三.依赖
没有新增任何依赖
四.资源准备

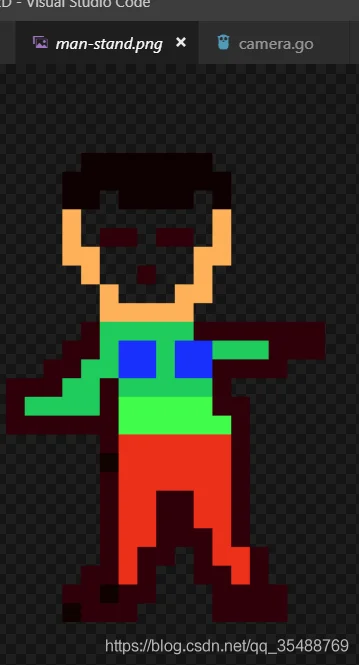

alphapng像素图像资源gifscreentogifKrita1.人物静止图

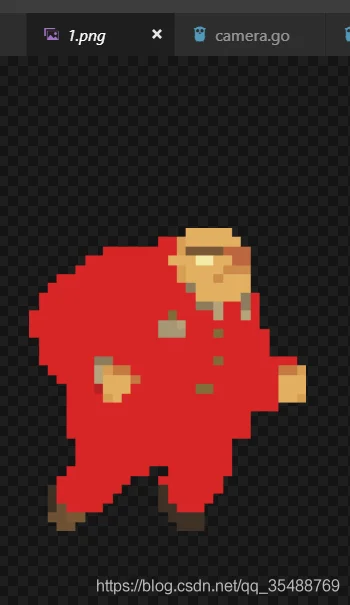

2.人物运动图（只展示第一帧）

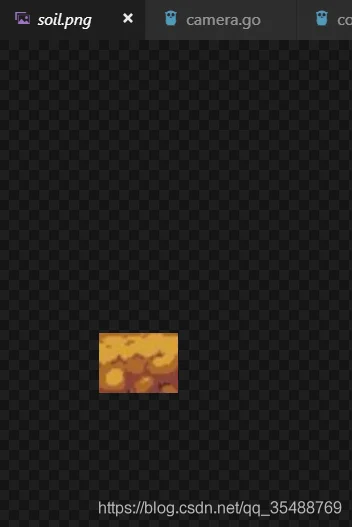

2.方块纹理图
将资源准备完成之后，就能开始代码的开发了
五.开始实现！
1.资源管理
golangshader.go
package resource
import(
"github.com/go-gl/gl/v4.1-core/gl"
"github.com/go-gl/mathgl/mgl32"
"strings"
"fmt"
)
type Shader struct{
ID uint32
}
func Compile(vertexString, fragmentString string) *Shader{
vertexShader,err := compile(vertexString+"\x00", gl.VERTEX_SHADER)
if err != nil{
panic(err)
}
fragmentShader,err := compile(fragmentString+"\x00", gl.FRAGMENT_SHADER)
if err != nil{
panic(err)
}
progID := gl.CreateProgram()
gl.AttachShader(progID, vertexShader)
gl.AttachShader(progID, fragmentShader)
gl.LinkProgram(progID)
gl.DeleteShader(vertexShader)
gl.DeleteShader(fragmentShader)
return &Shader{ ID: progID}
}
func (shader *Shader) Use(){
gl.UseProgram(shader.ID)
}
func (shader *Shader) SetBool(name string, value bool){
var a int32 = 0;
if(value){
a = 1
}
gl.Uniform1i(gl.GetUniformLocation(shader.ID, gl.Str(name + "\x00")), a)
}
func (shader *Shader) SetInt(name string, value int32){
gl.Uniform1i(gl.GetUniformLocation(shader.ID, gl.Str(name + "\x00")), value)
}
func (shader *Shader) SetFloat(name string, value float32){
gl.Uniform1f(gl.GetUniformLocation(shader.ID, gl.Str(name + "\x00")), value)
}
func (shader *Shader) SetMatrix4fv(name string, value *float32){
gl.UniformMatrix4fv(gl.GetUniformLocation(shader.ID, gl.Str(name + "\x00")), 1,false,value)
}
func (shader *Shader) SetVector3f(name string, vec3 mgl32.Vec3){
gl.Uniform3f(gl.GetUniformLocation(shader.ID, gl.Str(name + "\x00")), vec3[0], vec3[1], vec3[2]);
}
func compile(sourceString string, shaderType uint32)(uint32, error){
shader := gl.CreateShader(shaderType)
source, free := gl.Strs(sourceString)
gl.ShaderSource(shader, 1, source, nil)
free()
gl.CompileShader(shader)
var status int32
gl.GetShaderiv(shader, gl.COMPILE_STATUS, &status)
if status == gl.FALSE {
var logLength int32
gl.GetShaderiv(shader, gl.INFO_LOG_LENGTH, &logLength)
log := strings.Repeat("\x00", int(logLength+1))
gl.GetShaderInfoLog(shader, logLength, nil, gl.Str(log))
return 0, fmt.Errorf("failed to compile %v: %v", source, log)
}
return shader, nil
}
shaderuniform0X00golang两个着色器程序
EBO顶点
vertices := []float32{
0.0, 1.0, 0.0, 1.0,
1.0, 0.0, 1.0, 0.0,
0.0, 0.0, 0.0, 0.0,
0.0, 1.0, 0.0, 1.0,
1.0, 1.0, 1.0, 1.0,
1.0, 0.0, 1.0, 0.0,
}
由于我们开发的是2D游戏，所有顶点的z分量都为0，所以用顶点中每一行的前两位作为顶点坐标，后两位作为纹理坐标，并将顶点坐标和纹理坐标合为一个变量传入着色器中
顶点着色器
#version 410 core
layout (location = 0) in vec4 vertex;
out vec2 TexCoords;
uniform mat4 model;
uniform mat4 projection;
uniform mat4 view;
uniform int reverseX;
void main()
{ if(reverseX == 1){
TexCoords = vertex.zw;
}else{
TexCoords = vec2(1 - vertex.z, vertex.w);
}
gl_Position = projection * view * model * vec4(vertex.x, vertex.y, 0.0, 1.0);
}
modelprojectionviewvertexreverseXunifom片段着色器
#version 410 core
in vec2 TexCoords;
out vec4 FragColor;
uniform sampler2D image;
uniform vec3 spriteColor;
void main()
{
vec4 texColor = texture(image, TexCoords);
if(texColor.a < 0.1)
discard;
FragColor = vec4(spriteColor, 1.0) * texColor;
}
片段着色器与上一篇文章的基本相同，唯一区别是加入了一个判断，在图像区域的透明度小于0.1的时候，会放弃对这片区域的渲染。
texture2D.go
package resource
import(
"os"
"image"
"image/png"
"image/draw"
"errors"
"github.com/go-gl/gl/v4.1-core/gl"
)
type Texture2D struct{
ID uint32
TEXTUREINDEX uint32
}
func NewTexture2D(file string, TEXTUREINDEX uint32) *Texture2D{
imgFile, err := os.Open(file)
if err != nil {
panic(err)
}
img, err := png.Decode(imgFile)
if err != nil {
panic(err)
}
rgba := image.NewRGBA(img.Bounds())
if rgba.Stride != rgba.Rect.Size().X*4 {
panic(errors.New("unsupported stride"))
}
draw.Draw(rgba, rgba.Bounds(), img, image.Point{0, 0}, draw.Src)
var textureID uint32
gl.GenTextures(1, &textureID)
gl.BindTexture(gl.TEXTURE_2D, textureID)
gl.TexParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR)
gl.TexParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR)
gl.TexParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT)
gl.TexParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT)
gl.TexImage2D(
gl.TEXTURE_2D,
0,
gl.RGBA,
int32(rgba.Rect.Size().X),
int32(rgba.Rect.Size().Y),
0,
gl.RGBA,
gl.UNSIGNED_BYTE,
gl.Ptr(rgba.Pix))
gl.BindTexture(gl.TEXTURE_2D, 0);
return &Texture2D{ ID: textureID,TEXTUREINDEX:TEXTUREINDEX}
}
func (texture *Texture2D) Use(){
gl.ActiveTexture(texture.TEXTUREINDEX)
gl.BindTexture(gl.TEXTURE_2D, texture.ID)
}
texture2Dresource.go
package resource
import (
"io/ioutil"
)
var (
textures = make(map[string]*Texture2D)
shaders = make(map[string]*Shader)
)
func LoadShader(vShaderFile, fShaderFile, name string){
vertexString, err := ioutil.ReadFile(vShaderFile)
if err != nil{
panic(err)
}
fragmentString, err := ioutil.ReadFile(fShaderFile)
if err != nil{
panic(err)
}
shaders[name] = Compile(string(vertexString), string(fragmentString))
}
func GetShader(name string) *Shader{
return shaders[name]
}
func LoadTexture(TEXTUREINDEX uint32, file, name string){
texture := NewTexture2D(file, TEXTUREINDEX)
textures[name] = texture
}
func GetTexture(name string) *Texture2D{
return textures[name]
}
负责加载纹理和着色器的管理类
2.游戏对象
首先想一想游戏内所有元素都有的属性有哪些，并对其进行封装，创建一个游戏对象基类
gameObj.go
package model
import(
"game2D/resource"
"game2D/sprite"
"github.com/go-gl/mathgl/mgl32"
)
type GameObj struct{
texture *resource.Texture2D
x float32
y float32
size *mgl32.Vec2
rotate float32
color *mgl32.Vec3
isXReverse int32
}
func(gameObj GameObj) GetPosition()mgl32.Vec2{
return mgl32.Vec2{gameObj.x, gameObj.y}
}
func(gameObj *GameObj) SetPosition(position mgl32.Vec2){
gameObj.x = position[0]
gameObj.y = position[1]
}
func(gameObj GameObj) GetSize()mgl32.Vec2{
return mgl32.Vec2{gameObj.size[0], gameObj.size[1]}
}
func(gameObj *GameObj) Draw(renderer *sprite.SpriteRenderer){
renderer.DrawSprite(gameObj.texture, &mgl32.Vec2{gameObj.x,gameObj.y}, gameObj.size, gameObj.rotate, gameObj.color,gameObj.isXReverse)
}
func(gameObj *GameObj) ReverseX(){
gameObj.isXReverse = -1
}
func(gameObj *GameObj) ForWardX(){
gameObj.isXReverse = 1
}
func NewGameObj(texture *resource.Texture2D, x, y float32, size *mgl32.Vec2, rotate float32, color *mgl32.Vec3) *GameObj{
return &GameObj{texture:texture,
x:x,
y:y,
size:size,
rotate:rotate,
color:color,
isXReverse:1}
}
一个游戏内的对象一定会有那些属性？位置，大小，外观（纹理），颜色，和旋转的角度。同时为了效率，加入一个标识是否镜像的变量。有了这些属性，我们就能直接将其绘制到屏幕上。
3.精灵
我们已经有了可供绘制游戏对象，接下来自然就是将他绘制到屏幕上了，创建一个精灵绘制类
SpriteRenderer .go
package sprite
import(
"github.com/go-gl/mathgl/mgl32"
"game2D/resource"
"github.com/go-gl/gl/v4.1-core/gl"
)
type SpriteRenderer struct{
shader *resource.Shader
vao uint32
}
func NewSpriteRenderer(shader *resource.Shader) *SpriteRenderer{
spriteRenderer := SpriteRenderer{shader:shader}
spriteRenderer.initRenderData()
return &spriteRenderer
}
func(spriteRenderer *SpriteRenderer) DrawSprite(texture *resource.Texture2D, position *mgl32.Vec2, size *mgl32.Vec2, rotate float32, color *mgl32.Vec3,isReverseX int32){
model := mgl32.Translate3D(position[0], position[1], 0).Mul4(mgl32.Translate3D(0.5*size[0], 0.5*size[1], 0))
model = model.Mul4(mgl32.HomogRotate3D(rotate, mgl32.Vec3{0, 0, 1}))
model = model.Mul4(mgl32.Translate3D(-0.5*size[0], -0.5*size[1], 0))
model = model.Mul4(mgl32.Scale3D(size[0], size[1], 1))
spriteRenderer.shader.SetMatrix4fv("model", &model[0])
spriteRenderer.shader.SetInt("reverseX", isReverseX)
spriteRenderer.shader.SetVector3f("spriteColor", *color)
texture.Use()
gl.BindVertexArray(spriteRenderer.vao);
gl.DrawArrays(gl.TRIANGLES, 0, 6);
gl.BindVertexArray(0);
}
func(spriteRenderer *SpriteRenderer) initRenderData(){
var vbo uint32
vertices := []float32{
0.0, 1.0, 0.0, 1.0,
1.0, 0.0, 1.0, 0.0,
0.0, 0.0, 0.0, 0.0,
0.0, 1.0, 0.0, 1.0,
1.0, 1.0, 1.0, 1.0,
1.0, 0.0, 1.0, 0.0,
}
gl.GenVertexArrays(1, &spriteRenderer.vao);
gl.GenBuffers(1, &vbo);
gl.BindBuffer(gl.ARRAY_BUFFER, vbo);
gl.BufferData(gl.ARRAY_BUFFER, 4 * len(vertices), gl.Ptr(vertices), gl.STATIC_DRAW);
gl.BindVertexArray(spriteRenderer.vao);
gl.EnableVertexAttribArray(0);
gl.VertexAttribPointer(0, 4, gl.FLOAT, false, 4 * 4, gl.PtrOffset(0));
gl.BindBuffer(gl.ARRAY_BUFFER, 0);
gl.BindVertexArray(0);
}
initRenderDatamakeVaoDrawSprite4.摄像头
在上一篇文章中我们将用户视角变换的逻辑抽象成了一个摄像头类，这里我们同样需要
camera.go
package camera
import(
"github.com/go-gl/mathgl/mgl32"
)
type Camera2D struct{
position,front,up mgl32.Vec3
movementSpeed float32
wordWidth,wordHeight,screenWidth,screenHeight float32
}
func NewDefaultCamera(wordHeight ,wordWidth, screenWidth, screenHeight float32, position2D mgl32.Vec2) *Camera2D{
position := mgl32.Vec3{position2D[0], position2D[1], 0}
front := mgl32.Vec3{0, 0, -1}
up := mgl32.Vec3{0, 1, 0}
movementSpeed := float32(100)
return &Camera2D{position:position,
front:front,
up:up,
movementSpeed:movementSpeed,
wordHeight:wordHeight,
wordWidth:wordWidth,
screenHeight:screenHeight,
screenWidth:screenWidth}
}
//获取摄像头位置
func (camera *Camera2D) GetPosition() mgl32.Vec2{
return mgl32.Vec2{camera.position[0], camera.position[1]}
}
//获取view
func (camera *Camera2D) GetViewMatrix() *float32{
target := camera.position.Add(camera.front)
view := mgl32.LookAtV(camera.position,target, camera.up)
return &view[0]
}
//重置世界边界
func (camera *Camera2D) resetWordSize(width,height float32){
camera.wordWidth = width
camera.wordHeight = height
}
//重设屏幕大小
func (camera *Camera2D) resetScreenSize(width,height float32){
camera.screenWidth = width
camera.screenHeight = height
}
//根据坐标转换视野
func(camera *Camera2D) InPosition(x,y float32){
if(x <= 0){
camera.position[0] = 0
}else if(x + camera.screenWidth > camera.wordWidth){
x = camera.wordWidth - camera.screenWidth
}else{
camera.position[0] = x
}
if(y <= 0){
camera.position[1] = 0
}else if(y + camera.screenHeight > camera.wordHeight){
camera.position[1] = camera.wordHeight - camera.screenHeight
}else{
camera.position[1] = y
}
}
wordWidth,wordHeight,screenWidth,screenHeightInPosition基础篇结束，下一篇将会创建一个能自由奔跑的胖子和一张简单的地图
