ECharts参数说明

go-charts

go-chartssvgpnglightdarkgrafanaantpnglight

Apache EChartsgo-chartsApache EChartssvgpng

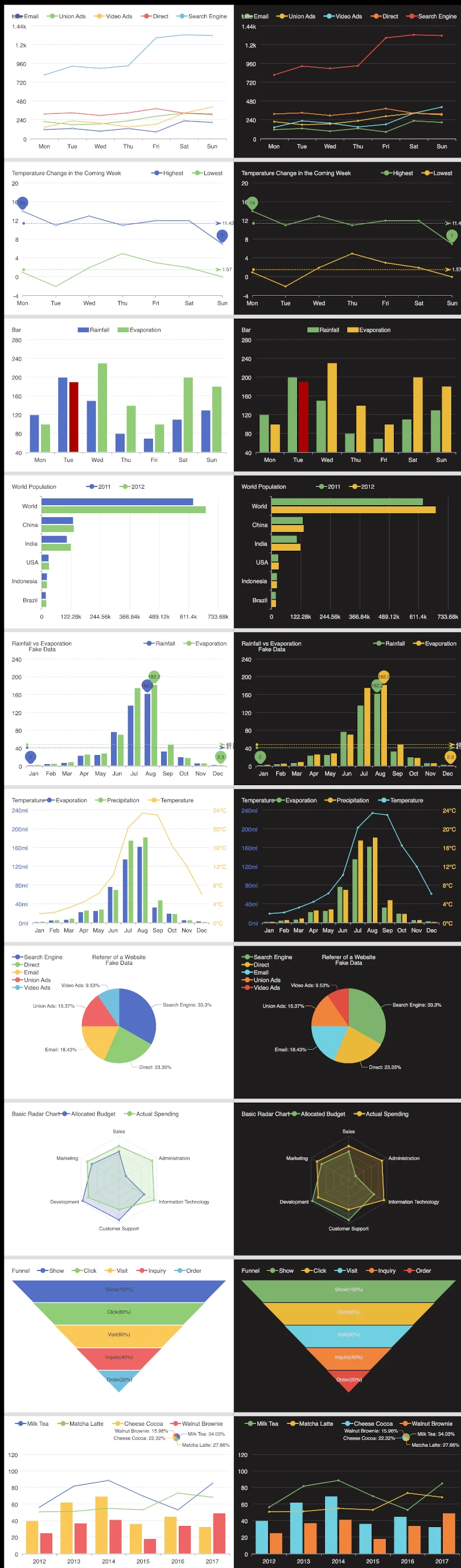

支持图表类型

linebarhorizontal barpieradarfunneltable

示例

go-charts

Line Chart

package main

import (
	charts "github.com/vicanso/go-charts/v2"
)

func main() {
	values := [][]float64{
		{
			120,
			132,
			101,
			134,
			90,
			230,
			210,
		},
		{
			// snip...
		},
		{
			// snip...
		},
		{
			// snip...
		},
		{
			// snip...
		},
	}
	p, err := charts.LineRender(
		values,
		charts.TitleTextOptionFunc("Line"),
		charts.XAxisDataOptionFunc([]string{
			"Mon",
			"Tue",
			"Wed",
			"Thu",
			"Fri",
			"Sat",
			"Sun",
		}),
		charts.LegendLabelsOptionFunc([]string{
			"Email",
			"Union Ads",
			"Video Ads",
			"Direct",
			"Search Engine",
		}, charts.PositionCenter),
	)

	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

Bar Chart

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	values := [][]float64{
		{
			2.0,
			4.9,
			7.0,
			23.2,
			25.6,
			76.7,
			135.6,
			162.2,
			32.6,
			20.0,
			6.4,
			3.3,
		},
		{
			// snip...
		},
	}
	p, err := charts.BarRender(
		values,
		charts.XAxisDataOptionFunc([]string{
			"Jan",
			"Feb",
			"Mar",
			"Apr",
			"May",
			"Jun",
			"Jul",
			"Aug",
			"Sep",
			"Oct",
			"Nov",
			"Dec",
		}),
		charts.LegendLabelsOptionFunc([]string{
			"Rainfall",
			"Evaporation",
		}, charts.PositionRight),
		charts.MarkLineOptionFunc(0, charts.SeriesMarkDataTypeAverage),
		charts.MarkPointOptionFunc(0, charts.SeriesMarkDataTypeMax,
			charts.SeriesMarkDataTypeMin),
		// custom option func
		func(opt *charts.ChartOption) {
			opt.SeriesList[1].MarkPoint = charts.NewMarkPoint(
				charts.SeriesMarkDataTypeMax,
				charts.SeriesMarkDataTypeMin,
			)
			opt.SeriesList[1].MarkLine = charts.NewMarkLine(
				charts.SeriesMarkDataTypeAverage,
			)
		},
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

Horizontal Bar Chart

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	values := [][]float64{
		{
			18203,
			23489,
			29034,
			104970,
			131744,
			630230,
		},
		{
			// snip...
		},
	}
	p, err := charts.HorizontalBarRender(
		values,
		charts.TitleTextOptionFunc("World Population"),
		charts.PaddingOptionFunc(charts.Box{
			Top:    20,
			Right:  40,
			Bottom: 20,
			Left:   20,
		}),
		charts.LegendLabelsOptionFunc([]string{
			"2011",
			"2012",
		}),
		charts.YAxisDataOptionFunc([]string{
			"Brazil",
			"Indonesia",
			"USA",
			"India",
			"China",
			"World",
		}),
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

Pie Chart

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	values := []float64{
		1048,
		735,
		580,
		484,
		300,
	}
	p, err := charts.PieRender(
		values,
		charts.TitleOptionFunc(charts.TitleOption{
			Text:    "Rainfall vs Evaporation",
			Subtext: "Fake Data",
			Left:    charts.PositionCenter,
		}),
		charts.PaddingOptionFunc(charts.Box{
			Top:    20,
			Right:  20,
			Bottom: 20,
			Left:   20,
		}),
		charts.LegendOptionFunc(charts.LegendOption{
			Orient: charts.OrientVertical,
			Data: []string{
				"Search Engine",
				"Direct",
				"Email",
				"Union Ads",
				"Video Ads",
			},
			Left: charts.PositionLeft,
		}),
		charts.PieSeriesShowLabel(),
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

Radar Chart

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	values := [][]float64{
		{
			4200,
			3000,
			20000,
			35000,
			50000,
			18000,
		},
		{
			// snip...
		},
	}
	p, err := charts.RadarRender(
		values,
		charts.TitleTextOptionFunc("Basic Radar Chart"),
		charts.LegendLabelsOptionFunc([]string{
			"Allocated Budget",
			"Actual Spending",
		}),
		charts.RadarIndicatorOptionFunc([]string{
			"Sales",
			"Administration",
			"Information Technology",
			"Customer Support",
			"Development",
			"Marketing",
		}, []float64{
			6500,
			16000,
			30000,
			38000,
			52000,
			25000,
		}),
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

Funnel Chart

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	values := []float64{
		100,
		80,
		60,
		40,
		20,
	}
	p, err := charts.FunnelRender(
		values,
		charts.TitleTextOptionFunc("Funnel"),
		charts.LegendLabelsOptionFunc([]string{
			"Show",
			"Click",
			"Visit",
			"Inquiry",
			"Order",
		}),
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

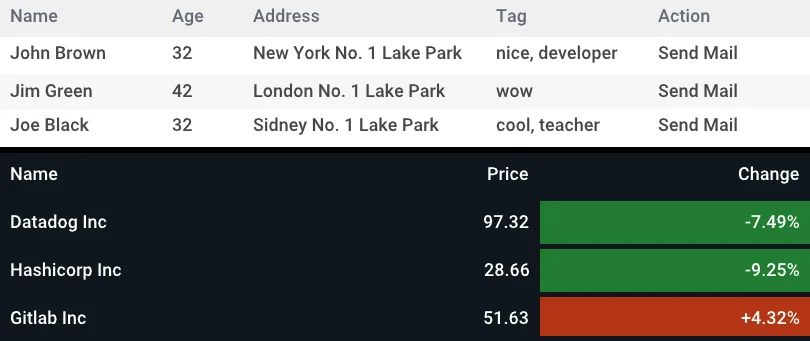

Table

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	header := []string{
		"Name",
		"Age",
		"Address",
		"Tag",
		"Action",
	}
	data := [][]string{
		{
			"John Brown",
			"32",
			"New York No. 1 Lake Park",
			"nice, developer",
			"Send Mail",
		},
		{
			"Jim Green	",
			"42",
			"London No. 1 Lake Park",
			"wow",
			"Send Mail",
		},
		{
			"Joe Black	",
			"32",
			"Sidney No. 1 Lake Park",
			"cool, teacher",
			"Send Mail",
		},
	}
	spans := map[int]int{
		0: 2,
		1: 1,
		// 设置第三列的span
		2: 3,
		3: 2,
		4: 2,
	}
	p, err := charts.TableRender(
		header,
		data,
		spans,
	)
	if err != nil {
		panic(err)
	}

	buf, err := p.Bytes()
	if err != nil {
		panic(err)
	}
	// snip...
}

ECharts Render

package main

import (
	"github.com/vicanso/go-charts/v2"
)

func main() {
	buf, err := charts.RenderEChartsToPNG(`{
		"title": {
			"text": "Line"
		},
		"xAxis": {
			"data": ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]
		},
		"series": [
			{
				"data": [150, 230, 224, 218, 135, 147, 260]
			}
		]
	}`)
	// snip...
}

常用函数

go-charts

LineRenderBarRenderPieRenderRadarRenderFunnelRenderPNGTypeOptionFontFamilyOptionFuncThemeOptionFuncTitleOptionFuncLegendOptionFuncXAxisOptionFuncYAxisOptionFuncWidthOptionFuncHeightOptionFuncPaddingOptionFuncBoxOptionFuncChildOptionFuncRadarIndicatorOptionFuncBackgroundColorOptionFunc

ECharts参数说明

go-charts

[type]svgpngsvg[theme]darklightgrafanalight[fontFamily][padding]padding: 5padding: [5, 10]padding:[5, 10, 5, 10]上右下左[box][width][height]titletitle.text\ntitle.subtext\ntitle.leftleftrightcenter20%20title.top20title.textStyle.colortitle.textStyle.fontSizetitle.textStyle.fontFamilyxAxisxAxis.boundaryGapnulltruefalsenulltruexAxis.splitNumberxAxis.datayAxisyAxis.minyAxis.maxyAxis.axisLabel.formatter"formatter": "{value} kg"yAxis.axisLine.lineStyle.colorlegendlegend.showfalselegend.datalegend.alignleftrightleftlegend.paddingpaddinglegend.leftleftrightlegend.topradarradar.indicatorradar.indicator.nameradar.indicator.maxradar.indicator.minseriesseries.namelegend.dataseries.typelinebarpieradarfunnellinebarseries.radius50%40%series.yAxisIndexseries.label.showseries.label.distanceseries.label.colorseries.itemStyle.colorseries.markPointseries.markPoint.symbolSizeseries.markPoint.datamaxminseries.markLineseries.markPoint.datamaxminaverageseries.data数值结构体[children]

性能

chrome headlessecharts

BenchmarkMultiChartPNGRender-8                78          15216336 ns/op         2298308 B/op       1148 allocs/op
BenchmarkMultiChartSVGRender-8               367           3356325 ns/op        20597282 B/op       3088 allocs/op

中文字符

robotoInstallFonttitle.textStyle.fontFamilysvgfontFamily

ttfotf
