Mapbox地图画布上的自定义绘图

我希望能够使用android sdk在地图箱地图上手动绘制复杂形状。我继承了map view类并重写了ondraw事件，但不幸的是，我所绘制的内容都被映射本身覆盖了。
作为一个例子，我需要能够绘制具有菱形边界的多边形和其他复杂形状。这在使用自定义图块提供程序和重写OnDraw的GoogleMaps中没有问题。
这是我迄今为止为mapbox所拥有的唯一代码：

    @Override
    public void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        Paint stroke = new Paint();
        stroke.setColor(Color.BLACK);
        stroke.setStyle(Paint.Style.STROKE);
        stroke.setStrokeWidth(5);
        stroke.setAntiAlias(true);

        canvas.drawLine(0f,0f,1440f,2464f,stroke);
    }

最佳答案：

MapViewonDraw()MapViewFrameLayoutViewGroupdispatchDraw()onDraw()MapViewMapViewLat/LonMapView

@Override
public void dispatchDraw(Canvas canvas) {
    super.dispatchDraw(canvas);
    canvas.save();
    drawDiamondsPath(canvas);
    canvas.restore();
}

对于自定义线条样式，可以使用

MapView

类的setPathEffect()方法。为此，您应该为“菱形图章”（以像素为单位）创建路径，该路径将每“前进”（以像素为单位）重复一次：

        mPathDiamondStamp = new Path();
        mPathDiamondStamp.moveTo(-DIAMOND_WIDTH / 2, 0);
        mPathDiamondStamp.lineTo(0, DIAMOND_HEIGHT / 2);
        mPathDiamondStamp.lineTo(DIAMOND_WIDTH / 2, 0);
        mPathDiamondStamp.lineTo(0, -DIAMOND_HEIGHT / 2);
        mPathDiamondStamp.close();

        mPathDiamondStamp.moveTo(-DIAMOND_WIDTH / 2 + DIAMOND_BORDER_WIDTH, 0);
        mPathDiamondStamp.lineTo(0, -DIAMOND_HEIGHT / 2 + DIAMOND_BORDER_WIDTH / 2);
        mPathDiamondStamp.lineTo(DIAMOND_WIDTH / 2 - DIAMOND_BORDER_WIDTH, 0);
        mPathDiamondStamp.lineTo(0, DIAMOND_HEIGHT / 2 - DIAMOND_BORDER_WIDTH / 2);
        mPathDiamondStamp.close();

        mPathDiamondStamp.setFillType(Path.FillType.EVEN_ODD);

        mDiamondPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mDiamondPaint.setColor(Color.BLUE);
        mDiamondPaint.setStrokeWidth(2);
        mDiamondPaint.setStyle(Paint.Style.FILL_AND_STROKE);
        mDiamondPaint.setStyle(Paint.Style.STROKE);
        mDiamondPaint.setPathEffect(new PathDashPathEffect(mPathDiamondStamp, DIAMOND_ADVANCE, DIAMOND_PHASE, PathDashPathEffect.Style.ROTATE));

（在这种情况下，有2个

dispatchDraw()

—第一个（顺时针）用于外边界，第二个（逆时针）用于“菱形”透明“孔”的内边界）。
若要将屏幕上的路径绑定到

Paint

坐标，则应覆盖

Path

和

Lat/Lon

的对象：

@Override
public void getMapAsync(OnMapReadyCallback callback) {
    mMapReadyCallback = callback;
    super.getMapAsync(this);
}

@Override
public void onMapReady(MapboxMap mapboxMap) {
    mMapboxMap = mapboxMap;
    if (mMapReadyCallback != null) {
        mMapReadyCallback.onMapReady(mapboxMap);
    }
}

在“lat/lon to screen”转换中可以使用它：

        mBorderPath = new Path();
        LatLng firstBorderPoint = mBorderPoints.get(0);
        PointF firstScreenPoint = mMapboxMap.getProjection().toScreenLocation(firstBorderPoint);
        mBorderPath.moveTo(firstScreenPoint.x, firstScreenPoint.y);

        for (int ixPoint = 1; ixPoint < mBorderPoints.size(); ixPoint++) {
            PointF currentScreenPoint = mMapboxMap.getProjection().toScreenLocation(mBorderPoints.get(ixPoint));
            mBorderPath.lineTo(currentScreenPoint.x, currentScreenPoint.y);
        }

完整源代码：
自定义drawmapview.java

public class DrawMapView extends MapView implements OnMapReadyCallback{

    private float DIAMOND_WIDTH = 42;
    private float DIAMOND_HEIGHT = 18;
    private float DIAMOND_ADVANCE = 1.5f * DIAMOND_WIDTH;       // spacing between each stamp of shape
    private float DIAMOND_PHASE = DIAMOND_WIDTH / 2;            // amount to offset before the first shape is stamped
    private float DIAMOND_BORDER_WIDTH = 6;                     // width of diamond border

    private Path mBorderPath;
    private Path mPathDiamondStamp;
    private Paint mDiamondPaint;
    private OnMapReadyCallback mMapReadyCallback;
    private MapboxMap mMapboxMap = null;
    private List<LatLng> mBorderPoints;

    public DrawMapView(@NonNull Context context) {
        super(context);
        init();
    }

    public DrawMapView(@NonNull Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public DrawMapView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    public DrawMapView(@NonNull Context context, @Nullable MapboxMapOptions options) {
        super(context, options);
        init();
    }

    public void setBorderPoints(List<LatLng> borderPoints) {
        mBorderPoints = borderPoints;
    }

    @Override
    public void getMapAsync(OnMapReadyCallback callback) {
        mMapReadyCallback = callback;
        super.getMapAsync(this);
    }

    @Override
    public void onMapReady(MapboxMap mapboxMap) {
        mMapboxMap = mapboxMap;
        if (mMapReadyCallback != null) {
            mMapReadyCallback.onMapReady(mapboxMap);
        }
    }

    @Override
    public void dispatchDraw(Canvas canvas) {
        super.dispatchDraw(canvas);
        canvas.save();
        drawDiamondsPath(canvas);
        canvas.restore();
    }

    private void drawDiamondsPath(Canvas canvas) {
        if (mBorderPoints == null || mBorderPoints.size() == 0) {
            return;
        }

        mBorderPath = new Path();

        LatLng firstBorderPoint = mBorderPoints.get(0);
        PointF firstScreenPoint = mMapboxMap.getProjection().toScreenLocation(firstBorderPoint);
        mBorderPath.moveTo(firstScreenPoint.x, firstScreenPoint.y);

        for (int ixPoint = 1; ixPoint < mBorderPoints.size(); ixPoint++) {
            PointF currentScreenPoint = mMapboxMap.getProjection().toScreenLocation(mBorderPoints.get(ixPoint));
            mBorderPath.lineTo(currentScreenPoint.x, currentScreenPoint.y);
        }

        mPathDiamondStamp = new Path();
        mPathDiamondStamp.moveTo(-DIAMOND_WIDTH / 2, 0);
        mPathDiamondStamp.lineTo(0, DIAMOND_HEIGHT / 2);
        mPathDiamondStamp.lineTo(DIAMOND_WIDTH / 2, 0);
        mPathDiamondStamp.lineTo(0, -DIAMOND_HEIGHT / 2);
        mPathDiamondStamp.close();

        mPathDiamondStamp.moveTo(-DIAMOND_WIDTH / 2 + DIAMOND_BORDER_WIDTH, 0);
        mPathDiamondStamp.lineTo(0, -DIAMOND_HEIGHT / 2 + DIAMOND_BORDER_WIDTH / 2);
        mPathDiamondStamp.lineTo(DIAMOND_WIDTH / 2 - DIAMOND_BORDER_WIDTH, 0);
        mPathDiamondStamp.lineTo(0, DIAMOND_HEIGHT / 2 - DIAMOND_BORDER_WIDTH / 2);
        mPathDiamondStamp.close();

        mPathDiamondStamp.setFillType(Path.FillType.EVEN_ODD);

        mDiamondPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mDiamondPaint.setColor(Color.BLUE);
        mDiamondPaint.setStrokeWidth(2);
        mDiamondPaint.setStyle(Paint.Style.FILL_AND_STROKE);
        mDiamondPaint.setStyle(Paint.Style.STROKE);
        mDiamondPaint.setPathEffect(new PathDashPathEffect(mPathDiamondStamp, DIAMOND_ADVANCE, DIAMOND_PHASE, PathDashPathEffect.Style.ROTATE));

        canvas.drawPath(mBorderPath, mDiamondPaint);
    }

    private void init() {
        mBorderPath = new Path();
        mPathDiamondStamp = new Path();
    }
}

活动主.java

public class MainActivity extends AppCompatActivity {

    private DrawMapView mapView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        MapboxAccountManager.start(this, getString(R.string.access_token));
        setContentView(R.layout.activity_main);

        mapView = (DrawMapView) findViewById(R.id.mapView);
        mapView.onCreate(savedInstanceState);
        mapView.getMapAsync(new OnMapReadyCallback() {
            @Override
            public void onMapReady(MapboxMap mapboxMap) {

                mapView.setBorderPoints(Arrays.asList(new LatLng(-36.930129, 174.958843),
                        new LatLng(-36.877860, 174.978108),
                        new LatLng(-36.846373, 174.901841),
                        new LatLng(-36.829215, 174.814659),
                        new LatLng(-36.791326, 174.779337),
                        new LatLng(-36.767680, 174.823242)));
            }
        });
    }

    @Override
    public void onResume() {
        super.onResume();
        mapView.onResume();
    }

    @Override
    public void onPause() {
        super.onPause();
        mapView.onPause();
    }

    @Override
    public void onSaveInstanceState(Bundle outState) {
        super.onSaveInstanceState(outState);
        mapView.onSaveInstanceState(outState);
    }

    @Override
    public void onLowMemory() {
        super.onLowMemory();
        mapView.onLowMemory();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        mapView.onDestroy();
    }

}

活动\main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:mapbox="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="ua.com.omelchenko.mapboxlines.MainActivity">

    <ua.com.omelchenko.mapboxlines.DrawMapView
        android:id="@+id/mapView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        mapbox:center_latitude="-36.841362"
        mapbox:center_longitude="174.851110"
        mapbox:style_url="@string/style_mapbox_streets"
        mapbox:zoom="10"/>
</RelativeLayout>

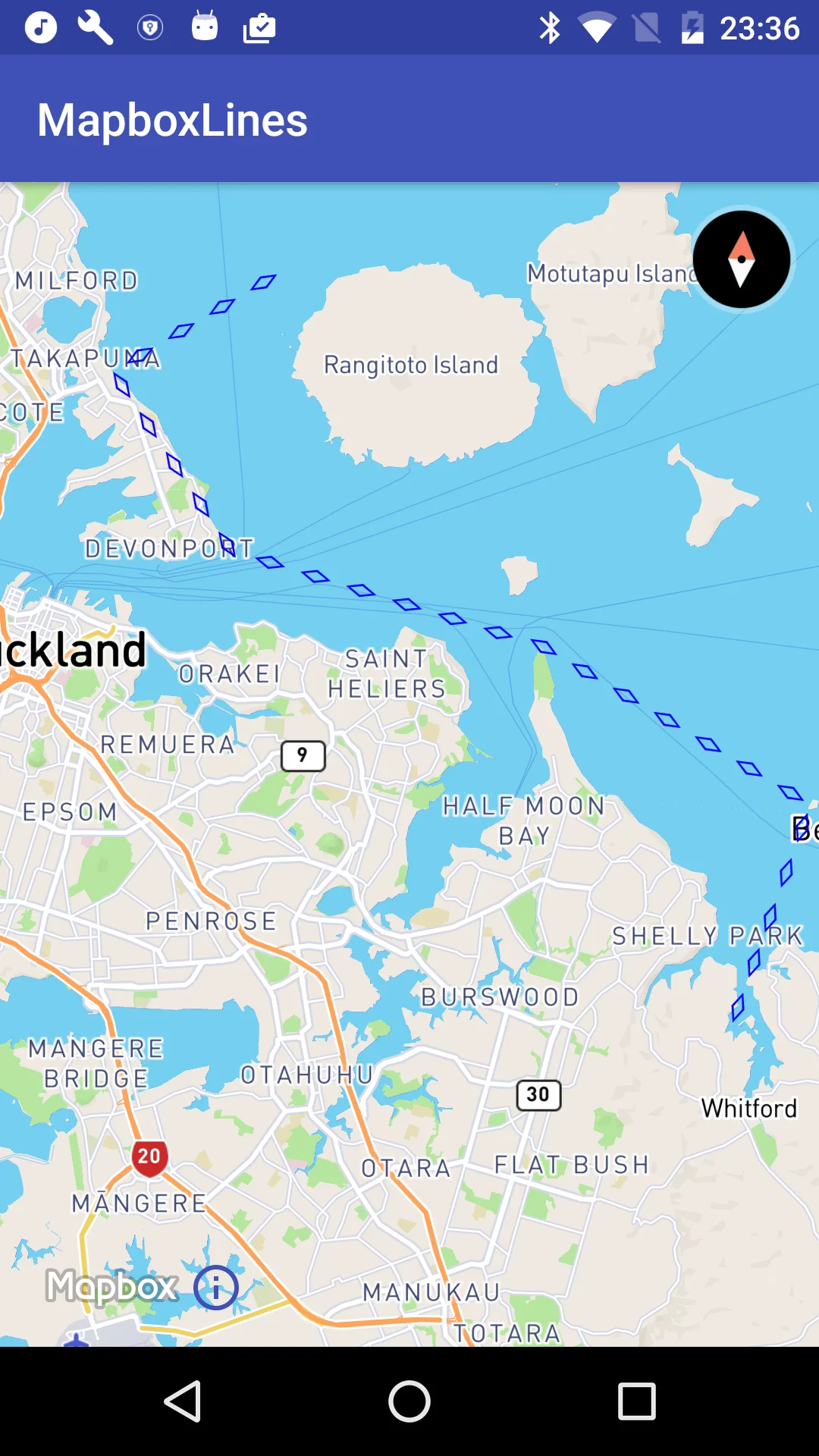

最后，结果是，您应该得到这样的结果：
enter image description here

你应该考虑一些“特殊情况”，例如，如果所有的路径点都在地图的当前视图之外，那么地图上就没有线条，甚至线条也应该交叉视图，并且应该是可见的。
2）（更好的方法）创建和发布带有额外线条的地图，并为它们custom style（尤其是查看“带有图像的线条模式”部分）。您可以使用Mapbox Studio进行此操作。在这种方法中，所有的“特殊情况”和性能问题都在mabpox方面得到解决。
