mac 上学习k8s系列（50）配置中心Apollo

        配置中心是微服务的基础组件，携程开源的apollo是业界比较知名的一个https://github.com/apolloconfig/apollo/下面我们通过搭建apollo系统，并且启动一个golang的客户端来演示apollo是如何工作的，apollo依赖mysql来管理元数据，因此需要部署mysql

version: '2'


services:
  apollo-quick-start:
    image: nobodyiam/apollo-quick-start
    container_name: apollo-quick-start
    depends_on:
      - apollo-db
    ports:
      - "8080:8080"
      - "8070:8070"
      - "8090:8090"
    volumes:
      - ~/learn/apollo/docker-quick-start/demo.sh:/apollo-quick-start/demo.sh
    links:
      - apollo-db
    environment:
      JAVA_OPTS: '-Xms100m -Xmx1000m -Xmn100m -Xss256k -XX:MetaspaceSize=10m -XX:MaxMetaspaceSize=250m'
      # APOLLO_CONFIG_DB_USERNAME: 'root'
      # APOLLO_CONFIG_DB_PASSWORD: 'apollo'
      # APOLLO_PORTAL_DB_USERNAME: 'root'
      # APOLLO_PORTAL_DB_PASSWORD: 'apollo'
    extra_hosts:
     - host.docker.internal:host-gateway
  apollo-db:
    image: mysql:5.7
    container_name: apollo-db
    environment:
      TZ: Asia/Shanghai
      MYSQL_ALLOW_EMPTY_PASSWORD: 'yes'
      # MYSQL_ROOT_PASSWORD: 'apollo'
    depends_on:
      - apollo-dbdata
    ports:
      - "13306:3306"
    volumes:
      - ./sql:/docker-entrypoint-initdb.d
    volumes_from:
      - apollo-dbdata
    extra_hosts:
      - host.docker.internal:host-gateway


  apollo-dbdata:
    image: alpine:latest
    container_name: apollo-dbdata
    volumes:
      - /var/lib/mysql
    extra_hosts:
      - host.docker.internal:host-gateway

然后启动服务

cd learn/apollo/docker-quick-start
% docker-compose up

等mysql启动后，导入mysql的数据库

mysql -uroot -h127.0.0.1 -P13306 -e "source ./sql/apolloportaldb.sql"
mysql -uroot -h127.0.0.1 -P13306 -e "source ./sql/apolloconfigdb.sql"

导入的mysql如下

apolloconfigdb.sql

--
-- Copyright 2022 Apollo Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
-- http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;


# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloConfigDB DEFAULT CHARACTER SET = utf8mb4;


Use ApolloConfigDB;


# Dump of table app
# ------------------------------------------------------------


DROP TABLE IF EXISTS `App`;


CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';






# Dump of table appnamespace
# ------------------------------------------------------------


DROP TABLE IF EXISTS `AppNamespace`;


CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字，注意，需要全局唯一',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';






# Dump of table audit
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Audit`;


CREATE TABLE `Audit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `EntityName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '表名',
  `EntityId` int(10) unsigned DEFAULT NULL COMMENT '记录ID',
  `OpName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '操作类型',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='日志审计表';






# Dump of table cluster
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Cluster`;


CREATE TABLE `Cluster` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT '集群名字',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'App id',
  `ParentClusterId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '父cluster',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `IX_ParentClusterId` (`ParentClusterId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='集群';






# Dump of table commit
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Commit`;


CREATE TABLE `Commit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `ChangeSets` longtext NOT NULL COMMENT '修改变更集',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `AppId` (`AppId`(191)),
  KEY `ClusterName` (`ClusterName`(191)),
  KEY `NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='commit 历史表';


# Dump of table grayreleaserule
# ------------------------------------------------------------


DROP TABLE IF EXISTS `GrayReleaseRule`;


CREATE TABLE `GrayReleaseRule` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'branch name',
  `Rules` varchar(16000) DEFAULT '[]' COMMENT '灰度规则',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '灰度对应的release',
  `BranchStatus` tinyint(2) DEFAULT '1' COMMENT '灰度分支状态: 0:删除分支,1:正在使用的规则 2：全量发布',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='灰度规则表';




# Dump of table instance
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Instance`;


CREATE TABLE `Instance` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `DataCenter` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Data Center Name',
  `Ip` varchar(32) NOT NULL DEFAULT '' COMMENT 'instance ip',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`AppId`,`ClusterName`,`Ip`,`DataCenter`),
  KEY `IX_IP` (`Ip`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='使用配置的应用实例';






# Dump of table instanceconfig
# ------------------------------------------------------------


DROP TABLE IF EXISTS `InstanceConfig`;


CREATE TABLE `InstanceConfig` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `InstanceId` int(11) unsigned DEFAULT NULL COMMENT 'Instance Id',
  `ConfigAppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Config App Id',
  `ConfigClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Cluster Name',
  `ConfigNamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Namespace Name',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `ReleaseDeliveryTime` timestamp NULL DEFAULT NULL COMMENT '配置获取时间',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`InstanceId`,`ConfigAppId`,`ConfigNamespaceName`),
  KEY `IX_ReleaseKey` (`ReleaseKey`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Valid_Namespace` (`ConfigAppId`,`ConfigClusterName`,`ConfigNamespaceName`,`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用实例的配置信息';






# Dump of table item
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Item`;


CREATE TABLE `Item` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `Key` varchar(128) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` longtext NOT NULL COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `LineNum` int(10) unsigned DEFAULT '0' COMMENT '行号',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_GroupId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置项目';






# Dump of table namespace
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Namespace`;


CREATE TABLE `Namespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_ClusterName_NamespaceName_DeletedAt` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191),`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='命名空间';






# Dump of table namespacelock
# ------------------------------------------------------------


DROP TABLE IF EXISTS `NamespaceLock`;


CREATE TABLE `NamespaceLock` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  `IsDeleted` bit(1) DEFAULT b'0' COMMENT '软删除',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_NamespaceId_DeletedAt` (`NamespaceId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='namespace的编辑锁';






# Dump of table release
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Release`;


CREATE TABLE `Release` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `Name` varchar(64) NOT NULL DEFAULT 'default' COMMENT '发布名字',
  `Comment` varchar(256) DEFAULT NULL COMMENT '发布说明',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Configurations` longtext NOT NULL COMMENT '发布配置',
  `IsAbandoned` bit(1) NOT NULL DEFAULT b'0' COMMENT '是否废弃',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_ReleaseKey_DeletedAt` (`ReleaseKey`,`DeletedAt`),
  KEY `AppId_ClusterName_GroupName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布';




# Dump of table releasehistory
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ReleaseHistory`;


CREATE TABLE `ReleaseHistory` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT '发布分支名',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '关联的Release Id',
  `PreviousReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '前一次发布的ReleaseId',
  `Operation` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '发布类型，0: 普通发布，1: 回滚，2: 灰度发布，3: 灰度规则更新，4: 灰度合并回主分支发布，5: 主分支发布灰度自动发布，6: 主分支回滚灰度自动发布，7: 放弃灰度',
  `OperationContext` longtext NOT NULL COMMENT '发布上下文信息',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`,`BranchName`),
  KEY `IX_ReleaseId` (`ReleaseId`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布历史';




# Dump of table releasemessage
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ReleaseMessage`;


CREATE TABLE `ReleaseMessage` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Message` varchar(1024) NOT NULL DEFAULT '' COMMENT '发布的消息内容',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Message` (`Message`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布消息';






# Dump of table serverconfig
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ServerConfig`;


CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Cluster` varchar(32) NOT NULL DEFAULT 'default' COMMENT '配置对应的集群，default为不针对特定的集群',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Key_Cluster_DeletedAt` (`Key`,`Cluster`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';


# Dump of table accesskey
# ------------------------------------------------------------


DROP TABLE IF EXISTS `AccessKey`;


CREATE TABLE `AccessKey` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Secret` varchar(128) NOT NULL DEFAULT '' COMMENT 'Secret',
  `IsEnabled` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: enabled, 0: disabled',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Secret_DeletedAt` (`AppId`,`Secret`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='访问密钥';


# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Cluster`, `Value`, `Comment`)
VALUES
    ('eureka.service.url', 'default', 'http://localhost:8080/eureka/', 'Eureka服务Url，多个service以英文逗号分隔'),
    ('namespace.lock.switch', 'default', 'false', '一次发布只能有一个人修改开关'),
    ('item.value.length.limit', 'default', '20000', 'item value最大长度限制'),
    ('config-service.cache.enabled', 'default', 'false', 'ConfigService是否开启缓存，开启后能提高性能，但是会增大内存消耗！'),
    ('item.key.length.limit', 'default', '128', 'item key 最大长度限制');


# Sample Data
# ------------------------------------------------------------
INSERT INTO `App` (`AppId`, `Name`, `OrgId`, `OrgName`, `OwnerName`, `OwnerEmail`)
VALUES
  ('SampleApp', 'Sample App', 'TEST1', '样例部门1', 'apollo', 'apollo@acme.com');


INSERT INTO `AppNamespace` (`Name`, `AppId`, `Format`, `IsPublic`, `Comment`)
VALUES
  ('application', 'SampleApp', 'properties', 0, 'default app namespace');


INSERT INTO `Cluster` (`Name`, `AppId`)
VALUES
  ('default', 'SampleApp');


INSERT INTO `Namespace` (`Id`, `AppId`, `ClusterName`, `NamespaceName`)
VALUES
  (1, 'SampleApp', 'default', 'application');




INSERT INTO `Item` (`NamespaceId`, `Key`, `Value`, `Comment`, `LineNum`)
VALUES
  (1, 'timeout', '100', 'sample timeout配置', 1);


INSERT INTO `Release` (`ReleaseKey`, `Name`, `Comment`, `AppId`, `ClusterName`, `NamespaceName`, `Configurations`)
VALUES
  ('20161009155425-d3a0749c6e20bc15', '20161009155424-release', 'Sample发布', 'SampleApp', 'default', 'application', '{\"timeout\":\"100\"}');


INSERT INTO `ReleaseHistory` (`AppId`, `ClusterName`, `NamespaceName`, `BranchName`, `ReleaseId`, `PreviousReleaseId`, `Operation`, `OperationContext`, `DataChange_CreatedBy`, `DataChange_LastModifiedBy`)
VALUES
  ('SampleApp', 'default', 'application', 'default', 1, 0, 0, '{}', 'apollo', 'apollo');


INSERT INTO `ReleaseMessage` (`Message`)
VALUES
  ('SampleApp+default+application');


/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

apolloportaldb.sql

--
-- Copyright 2022 Apollo Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
-- http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;


# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloPortalDB DEFAULT CHARACTER SET = utf8mb4;


Use ApolloPortalDB;


# Dump of table app
# ------------------------------------------------------------


DROP TABLE IF EXISTS `App`;


CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';






# Dump of table appnamespace
# ------------------------------------------------------------


DROP TABLE IF EXISTS `AppNamespace`;


CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字，注意，需要全局唯一',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';






# Dump of table consumer
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Consumer`;


CREATE TABLE `Consumer` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='开放API消费者';






# Dump of table consumeraudit
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ConsumerAudit`;


CREATE TABLE `ConsumerAudit` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `Uri` varchar(1024) NOT NULL DEFAULT '' COMMENT '访问的Uri',
  `Method` varchar(16) NOT NULL DEFAULT '' COMMENT '访问的Method',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_ConsumerId` (`ConsumerId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer审计表';






# Dump of table consumerrole
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ConsumerRole`;


CREATE TABLE `ConsumerRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_ConsumerId_RoleId_DeletedAt` (`ConsumerId`,`RoleId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer和role的绑定表';






# Dump of table consumertoken
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ConsumerToken`;


CREATE TABLE `ConsumerToken` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'ConsumerId',
  `Token` varchar(128) NOT NULL DEFAULT '' COMMENT 'token',
  `Expires` datetime NOT NULL DEFAULT '2099-01-01 00:00:00' COMMENT 'token失效时间',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Token_DeletedAt` (`Token`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer token表';


# Dump of table favorite
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Favorite`;


CREATE TABLE `Favorite` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `UserId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '收藏的用户',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Position` int(32) NOT NULL DEFAULT '10000' COMMENT '收藏顺序',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_UserId_AppId_DeletedAt` (`UserId`,`AppId`,`DeletedAt`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB AUTO_INCREMENT=23 DEFAULT CHARSET=utf8mb4 COMMENT='应用收藏表';


# Dump of table permission
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Permission`;


CREATE TABLE `Permission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `PermissionType` varchar(32) NOT NULL DEFAULT '' COMMENT '权限类型',
  `TargetId` varchar(256) NOT NULL DEFAULT '' COMMENT '权限对象类型',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_TargetId_PermissionType_DeletedAt` (`TargetId`,`PermissionType`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='permission表';






# Dump of table role
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Role`;


CREATE TABLE `Role` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleName` varchar(256) NOT NULL DEFAULT '' COMMENT 'Role name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_RoleName_DeletedAt` (`RoleName`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色表';






# Dump of table rolepermission
# ------------------------------------------------------------


DROP TABLE IF EXISTS `RolePermission`;


CREATE TABLE `RolePermission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `PermissionId` int(10) unsigned DEFAULT NULL COMMENT 'Permission Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_RoleId_PermissionId_DeletedAt` (`RoleId`,`PermissionId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_PermissionId` (`PermissionId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色和权限的绑定表';






# Dump of table serverconfig
# ------------------------------------------------------------


DROP TABLE IF EXISTS `ServerConfig`;


CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Key_DeletedAt` (`Key`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';






# Dump of table userrole
# ------------------------------------------------------------


DROP TABLE IF EXISTS `UserRole`;


CREATE TABLE `UserRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `UserId` varchar(128) DEFAULT '' COMMENT '用户身份标识',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_UserId_RoleId_DeletedAt` (`UserId`,`RoleId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户和role的绑定表';


# Dump of table Users
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Users`;


CREATE TABLE `Users` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL DEFAULT 'default' COMMENT '用户登录账户',
  `Password` varchar(512) NOT NULL DEFAULT 'default' COMMENT '密码',
  `UserDisplayName` varchar(512) NOT NULL DEFAULT 'default' COMMENT '用户名称',
  `Email` varchar(64) NOT NULL DEFAULT 'default' COMMENT '邮箱地址',
  `Enabled` tinyint(4) DEFAULT NULL COMMENT '是否有效',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Username` (`Username`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户表';




# Dump of table Authorities
# ------------------------------------------------------------


DROP TABLE IF EXISTS `Authorities`;


CREATE TABLE `Authorities` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL,
  `Authority` varchar(50) NOT NULL,
  PRIMARY KEY (`Id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;




# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Value`, `Comment`)
VALUES
    ('apollo.portal.envs', 'dev', '可支持的环境列表'),
    ('organizations', '[{\"orgId\":\"TEST1\",\"orgName\":\"样例部门1\"},{\"orgId\":\"TEST2\",\"orgName\":\"样例部门2\"}]', '部门列表'),
    ('superAdmin', 'apollo', 'Portal超级管理员'),
    ('api.readTimeout', '10000', 'http接口read timeout'),
    ('consumer.token.salt', 'someSalt', 'consumer token salt'),
    ('admin.createPrivateNamespace.switch', 'true', '是否允许项目管理员创建私有namespace'),
    ('configView.memberOnly.envs', 'dev', '只对项目成员显示配置信息的环境列表，多个env以英文逗号分隔'),
    ('apollo.portal.meta.servers', '{}', '各环境Meta Service列表');


INSERT INTO `Users` (`Username`, `Password`, `UserDisplayName`, `Email`, `Enabled`)
VALUES
    ('apollo', '$2a$10$7r20uS.BQ9uBpf3Baj3uQOZvMVvB1RN3PYoKE94gtz2.WAOuiiwXS', 'apollo', 'apollo@acme.com', 1);


INSERT INTO `Authorities` (`Username`, `Authority`) VALUES ('apollo', 'ROLE_user');


# Sample Data
# ------------------------------------------------------------
INSERT INTO `App` (`AppId`, `Name`, `OrgId`, `OrgName`, `OwnerName`, `OwnerEmail`)
VALUES
  ('SampleApp', 'Sample App', 'TEST1', '样例部门1', 'apollo', 'apollo@acme.com');


INSERT INTO `AppNamespace` (`Name`, `AppId`, `Format`, `IsPublic`, `Comment`)
VALUES
  ('application', 'SampleApp', 'properties', 0, 'default app namespace');


INSERT INTO `Permission` (`Id`, `PermissionType`, `TargetId`)
VALUES
  (1, 'CreateCluster', 'SampleApp'),
  (2, 'CreateNamespace', 'SampleApp'),
  (3, 'AssignRole', 'SampleApp'),
  (4, 'ModifyNamespace', 'SampleApp+application'),
  (5, 'ReleaseNamespace', 'SampleApp+application');


INSERT INTO `Role` (`Id`, `RoleName`)
VALUES
  (1, 'Master+SampleApp'),
  (2, 'ModifyNamespace+SampleApp+application'),
  (3, 'ReleaseNamespace+SampleApp+application');


INSERT INTO `RolePermission` (`RoleId`, `PermissionId`)
VALUES
  (1, 1),
  (1, 2),
  (1, 3),
  (2, 4),
  (3, 5);


INSERT INTO `UserRole` (`UserId`, `RoleId`)
VALUES
  ('apollo', 1),
  ('apollo', 2),
  ('apollo', 3);


-- spring session (https://github.com/spring-projects/spring-session/blob/faee8f1bdb8822a5653a81eba838dddf224d92d6/spring-session-jdbc/src/main/resources/org/springframework/session/jdbc/schema-mysql.sql)
CREATE TABLE SPRING_SESSION (
  PRIMARY_ID CHAR(36) NOT NULL,
  SESSION_ID CHAR(36) NOT NULL,
  CREATION_TIME BIGINT NOT NULL,
  LAST_ACCESS_TIME BIGINT NOT NULL,
  MAX_INACTIVE_INTERVAL INT NOT NULL,
  EXPIRY_TIME BIGINT NOT NULL,
  PRINCIPAL_NAME VARCHAR(100),
  CONSTRAINT SPRING_SESSION_PK PRIMARY KEY (PRIMARY_ID)
) ENGINE=InnoDB ROW_FORMAT=DYNAMIC;


CREATE UNIQUE INDEX SPRING_SESSION_IX1 ON SPRING_SESSION (SESSION_ID);
CREATE INDEX SPRING_SESSION_IX2 ON SPRING_SESSION (EXPIRY_TIME);
CREATE INDEX SPRING_SESSION_IX3 ON SPRING_SESSION (PRINCIPAL_NAME);


CREATE TABLE SPRING_SESSION_ATTRIBUTES (
  SESSION_PRIMARY_ID CHAR(36) NOT NULL,
  ATTRIBUTE_NAME VARCHAR(200) NOT NULL,
  ATTRIBUTE_BYTES BLOB NOT NULL,
  CONSTRAINT SPRING_SESSION_ATTRIBUTES_PK PRIMARY KEY (SESSION_PRIMARY_ID, ATTRIBUTE_NAME),
  CONSTRAINT SPRING_SESSION_ATTRIBUTES_FK FOREIGN KEY (SESSION_PRIMARY_ID) REFERENCES SPRING_SESSION(PRIMARY_ID) ON DELETE CASCADE
) ENGINE=InnoDB ROW_FORMAT=DYNAMIC;


/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

启动成功后我们可以看到

apollo-db             | 2022-10-31T14:45:51.720326Z 0 [Note] Skipping generation of RSA key pair as key files are present in data directory.
apollo-db             | 2022-10-31T14:45:51.730496Z 0 [Note] InnoDB: Buffer pool(s) load completed at 221031 22:45:51
apollo-db             | 2022-10-31T14:45:51.731010Z 0 [Note] Server hostname (bind-address): '*'; port: 3306
apollo-db             | 2022-10-31T14:45:51.731188Z 0 [Note] IPv6 is available.
apollo-db             | 2022-10-31T14:45:51.731250Z 0 [Note]   - '::' resolves to '::';
apollo-db             | 2022-10-31T14:45:51.731281Z 0 [Note] Server socket created on IP: '::'.
apollo-db             | 2022-10-31T14:45:51.748197Z 0 [Warning] Insecure configuration for --pid-file: Location '/var/run/mysqld' in the path is accessible to all OS users. Consider choosing a different directory.
apollo-quick-start    | ==== starting service ====
apollo-quick-start    | Service logging file is ./service/apollo-service.log
apollo-db             | 2022-10-31T14:45:51.817694Z 0 [Note] Event Scheduler: Loaded 0 events
apollo-db             | 2022-10-31T14:45:51.817971Z 0 [Note] mysqld: ready for connections.
apollo-db             | Version: '5.7.40'  socket: '/var/run/mysqld/mysqld.sock'  port: 3306  MySQL Community Server (GPL)
apollo-quick-start    | Application is running as root (UID 0). This is considered insecure.
apollo-quick-start    | Started [56]
apollo-quick-start    | Waiting for config service startup................
apollo-quick-start    | Config service started. You may visit http://host.docker.internal:8080 for service status now!
apollo-quick-start    | Waiting for admin service startup..
apollo-quick-start    | Admin service started
apollo-quick-start    | ==== starting portal ====
apollo-quick-start    | Portal logging file is ./portal/apollo-portal.log
apollo-quick-start    | Application is running as root (UID 0). This is considered insecure.
apollo-quick-start    | Started [309]
apollo-db             | 2022-10-31T14:48:11.078536Z 22 [Note] Got timeout reading communication packets
apollo-quick-start    | Waiting for portal startup..............
apollo-quick-start    | Portal started. You can visit http://host.docker.internal:8070 now!

然后启动我们的apollo-service

%  docker exec -i apollo-quick-start apollo-quick-start/demo.sh  start
JAVA_OPTS = -Xms100m -Xmx1000m -Xmn100m -Xss256k -XX:MetaspaceSize=10m -XX:MaxMetaspaceSize=250m
==== starting service ====
Service logging file is ./service/apollo-service.log
Application is running as root (UID 0). This is considered insecure.
Started [494]
Waiting for config service startup
Config service started. You may visit http://host.docker.internal:8080 for service status now!
Waiting for admin service startup
Admin service started
==== starting portal ====
Portal logging file is ./portal/apollo-portal.log
Application is running as root (UID 0). This is considered insecure.
Started [538]
Waiting for portal startup
Portal started. You can visit http://host.docker.internal:8070 now!

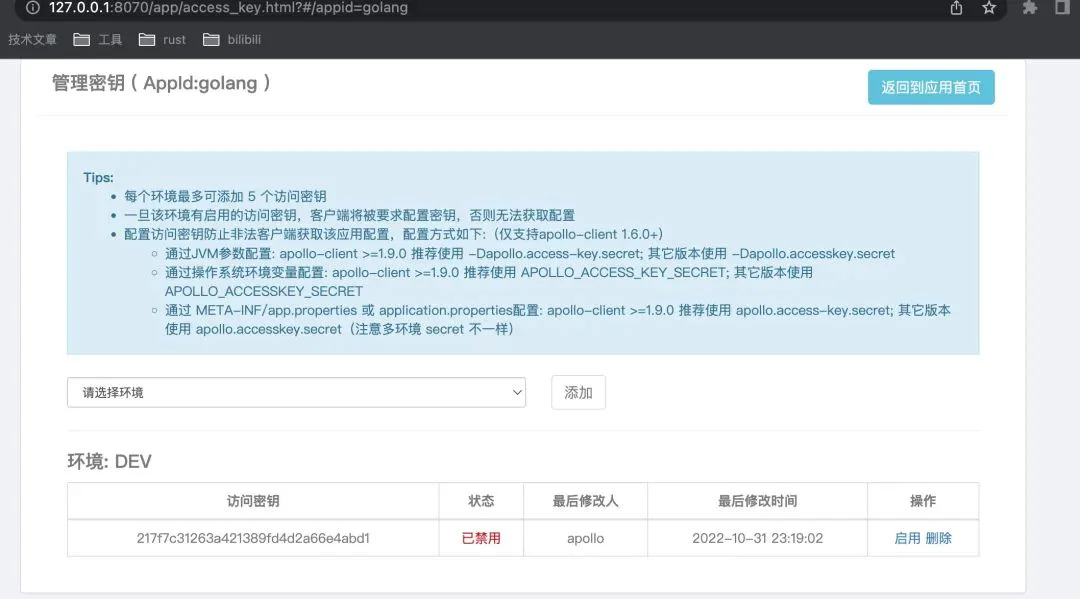

打开链接http://127.0.0.1:8070/app/access_key.html?#/appid=golang，用户名apollo，密码admin进行配置

        启动demo客户端测试下

% docker exec -i apollo-quick-start apollo-quick-start/demo.sh client
JAVA_OPTS = -Xms100m -Xmx1000m -Xmn100m -Xss256k -XX:MetaspaceSize=10m -XX:MaxMetaspaceSize=250m
[apollo-demo][main]2022-10-31 10:21:44,058 INFO  [com.ctrip.framework.foundation.internals.provider.DefaultApplicationProvider] App ID is set to SampleApp by app.id property from META-INF/app.properties
[apollo-demo][main]2022-10-31 10:21:44,059 WARN  [com.ctrip.framework.foundation.internals.provider.DefaultApplicationProvider] app.label is not available from System Property and META-INF/app.properties. It is set to null
[apollo-demo][main]2022-10-31 10:21:44,061 INFO  [com.ctrip.framework.foundation.internals.provider.DefaultServerProvider] Environment is set to [dev] by JVM system property 'env'.
[apollo-demo][main]2022-10-31 10:21:44,122 INFO  [com.ctrip.framework.apollo.internals.DefaultMetaServerProvider] Located meta services from apollo.meta configuration: http://host.docker.internal:8080!
[apollo-demo][main]2022-10-31 10:21:44,123 INFO  [com.ctrip.framework.apollo.core.MetaDomainConsts] Located meta server address http://host.docker.internal:8080 for env DEV from com.ctrip.framework.apollo.internals.DefaultMetaServerProvider
Apollo Config Demo. Please input key to get the value. Input quit to exit.
>

> timeout
Loading key : timeout with value: 100

切换到sampleApp发送一个配置，可以看到客户端收到变化了

> Changes for namespace application
Change - key: 12131, oldValue: null, newValue: 12131, changeType: ADDED

demo.sh内容如下

#!/bin/bash


# handle env
if [[ -n "$JAVA_OPTS" ]]; then
  echo JAVA_OPTS = $JAVA_OPTS
fi


if [[ -n "$APOLLO_CONFIG_DB_USERNAME" ]]; then
  echo APOLLO_CONFIG_DB_USERNAME = "$APOLLO_CONFIG_DB_USERNAME"
fi


if [[ -n "$APOLLO_CONFIG_DB_PASSWORD" ]]; then
  echo APOLLO_CONFIG_DB_PASSWORD = "${APOLLO_CONFIG_DB_PASSWORD//?/*}"
fi


if [[ -n "$APOLLO_PORTAL_DB_USERNAME" ]]; then
  echo APOLLO_PORTAL_DB_USERNAME = "$APOLLO_PORTAL_DB_USERNAME"
fi


if [[ -n "$APOLLO_PORTAL_DB_PASSWORD" ]]; then
  echo APOLLO_PORTAL_DB_PASSWORD = "${APOLLO_PORTAL_DB_PASSWORD//?/*}"
fi


# apollo config db info
apollo_config_db_url="jdbc:mysql://apollo-db:3306/ApolloConfigDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai"
apollo_config_db_username=${APOLLO_CONFIG_DB_USERNAME:-root}
apollo_config_db_password=${APOLLO_CONFIG_DB_PASSWORD:-}


# apollo portal db info
apollo_portal_db_url="jdbc:mysql://apollo-db:3306/ApolloPortalDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai"
apollo_portal_db_username=${APOLLO_PORTAL_DB_USERNAME:-root}
apollo_portal_db_password=${APOLLO_PORTAL_DB_PASSWORD:-}


# =============== Please do not modify the following content =============== #


if [ "$(uname)" == "Darwin" ]; then
    windows="0"
elif [ "$(expr substr $(uname -s) 1 5)" == "Linux" ]; then
    windows="0"
elif [ "$(expr substr $(uname -s) 1 5)" == "MINGW" ]; then
    windows="1"
else
    windows="0"
fi


# meta server url
#host=docker.for.mac.host.internal
# host=localhost
host=host.docker.internal


config_server_url=http://${host}:8080
admin_server_url=http://${host}:8090
eureka_service_url=$config_server_url/eureka/
portal_url=http://${host}:8070


# JAVA OPTS
BASE_JAVA_OPTS="$JAVA_OPTS -Denv=dev"
CLIENT_JAVA_OPTS="$BASE_JAVA_OPTS -Dapollo.meta=$config_server_url"
SERVER_JAVA_OPTS="$BASE_JAVA_OPTS -Dspring.profiles.active=github -Deureka.service.url=$eureka_service_url"
PORTAL_JAVA_OPTS="$BASE_JAVA_OPTS -Ddev_meta=$config_server_url -Dspring.profiles.active=github,auth -Deureka.client.enabled=false -Dhibernate.query.plan_cache_max_size=192"


# executable
JAR_FILE=apollo-all-in-one.jar
SERVICE_DIR=./service
SERVICE_JAR_NAME=apollo-service.jar
SERVICE_JAR=$SERVICE_DIR/$SERVICE_JAR_NAME
SERVICE_LOG=$SERVICE_DIR/apollo-service.log
PORTAL_DIR=./portal
PORTAL_JAR_NAME=apollo-portal.jar
PORTAL_JAR=$PORTAL_DIR/$PORTAL_JAR_NAME
PORTAL_LOG=$PORTAL_DIR/apollo-portal.log
CLIENT_DIR=./client
CLIENT_JAR=$CLIENT_DIR/apollo-demo.jar


# go to script directory
cd "${0%/*}"


function checkJava {
  if [[ -n "$JAVA_HOME" ]] && [[ -x "$JAVA_HOME/bin/java" ]];  then
      if [ "$windows" == "1" ]; then
        tmp_java_home=`cygpath -sw "$JAVA_HOME"`
        export JAVA_HOME=`cygpath -u "$tmp_java_home"`
        echo "Windows new JAVA_HOME is: $JAVA_HOME"
      fi
      _java="$JAVA_HOME/bin/java"
  elif type -p java > dev/null; then
    _java=java
  else
      echo "Could not find java executable, please check PATH and JAVA_HOME variables."
      exit 1
  fi


  if [[ "$_java" ]]; then
      version=$("$_java" -version 2>&1 | awk -F '"' '/version/ {print $2}')
      version_in_digit=$(echo "$version" | awk -F. '{printf("%03d%03d",$1,$2);}')
      if [[ $version_in_digit < 001008 ]]; then
          echo "Java version is $version, please make sure java 1.8+ is in the path"
          exit 1
      fi
  fi
}


function checkServerAlive {
  declare -i counter=0
  declare -i max_counter=24 # 24*5=120s
  declare -i total_time=0


  SERVER_URL="$1"


  until [[ (( counter -ge max_counter )) || "$(curl -X GET --silent --connect-timeout 1 --max-time 2 --head $SERVER_URL | grep "HTTP")" != "" ]];
  do
    printf "."
    counter+=1
    sleep 5
  done


  total_time=counter*5


  if [[ (( counter -ge max_counter )) ]];
  then
    return $total_time
  fi


  return 0
}


checkJava


if [ "$1" = "start" ] ; then
  echo "==== starting service ===="
  echo "Service logging file is $SERVICE_LOG"
  export APP_NAME="apollo-service"
  export JAVA_OPTS="$SERVER_JAVA_OPTS -Dlogging.file.name=./apollo-service.log -Dspring.datasource.url=$apollo_config_db_url -Dspring.datasource.username=$apollo_config_db_username -Dspring.datasource.password=$apollo_config_db_password"


  if [[ -f $SERVICE_JAR ]]; then
    rm -rf $SERVICE_JAR
  fi


  ln $JAR_FILE $SERVICE_JAR
  chmod a+x $SERVICE_JAR


  $SERVICE_JAR start --configservice --adminservice


  rc=$?
  if [[ $rc != 0 ]];
  then
    echo "Failed to start service, return code: $rc. Please check $SERVICE_LOG for more information."
    exit $rc;
  fi


  printf "Waiting for config service startup"
  checkServerAlive $config_server_url


  rc=$?
  if [[ $rc != 0 ]];
  then
    printf "\nConfig service failed to start in $rc seconds! Please check $SERVICE_LOG for more information.\n"
    exit 1;
  fi


  printf "\nConfig service started. You may visit $config_server_url for service status now!\n"


  printf "Waiting for admin service startup"
  checkServerAlive $admin_server_url


  rc=$?
  if [[ $rc != 0 ]];
  then
    printf "\nAdmin service failed to start in $rc seconds! Please check $SERVICE_LOG for more information.\n"
    exit 1;
  fi


  printf "\nAdmin service started\n"


  echo "==== starting portal ===="
  echo "Portal logging file is $PORTAL_LOG"
  export APP_NAME="apollo-portal"
  export JAVA_OPTS="$PORTAL_JAVA_OPTS -Dlogging.file.name=./apollo-portal.log -Dserver.port=8070 -Dspring.datasource.url=$apollo_portal_db_url -Dspring.datasource.username=$apollo_portal_db_username -Dspring.datasource.password=$apollo_portal_db_password"


  if [[ -f $PORTAL_JAR ]]; then
    rm -rf $PORTAL_JAR
  fi


  ln $JAR_FILE $PORTAL_JAR
  chmod a+x $PORTAL_JAR


  $PORTAL_JAR start --portal


  rc=$?
  if [[ $rc != 0 ]];
  then
    echo "Failed to start portal, return code: $rc. Please check $PORTAL_LOG for more information."
    exit $rc;
  fi


  printf "Waiting for portal startup"
  checkServerAlive $portal_url


  rc=$?
  if [[ $rc != 0 ]];
  then
    printf "\nPortal failed to start in $rc seconds! Please check $PORTAL_LOG for more information.\n"
    exit 1;
  fi


  printf "\nPortal started. You can visit $portal_url now!\n"


  tail -f dev/null
elif [ "$1" = "client" ] ; then
  if [ "$windows" == "1" ]; then
    java -classpath "$CLIENT_DIR;$CLIENT_JAR" $CLIENT_JAVA_OPTS com.ctrip.framework.apollo.demo.api.SimpleApolloConfigDemo
  else
    java -classpath $CLIENT_DIR:$CLIENT_JAR $CLIENT_JAVA_OPTS com.ctrip.framework.apollo.demo.api.SimpleApolloConfigDemo
  fi


elif [ "$1" = "stop" ] ; then
  echo "==== stopping portal ===="
  export APP_NAME="apollo-portal"
  cd $PORTAL_DIR
  ./$PORTAL_JAR_NAME stop


  cd ..


  echo "==== stopping service ===="
  export APP_NAME="apollo-service"
  cd $SERVICE_DIR
  ./$SERVICE_JAR_NAME stop


else
  echo "Usage: demo.sh ( commands ... )"
  echo "commands:"
  echo "  start         start services and portal"
  echo "  client        start client demo program"
  echo "  stop          stop services and portal"
  exit 1
fi

定义一个golang应用，namespace也取名字叫golang

定义一个应用密钥

启动我们的golang客户端尝试读取下

package main


import (
  "fmt"


  "github.com/apolloconfig/agollo/v4"
  "github.com/apolloconfig/agollo/v4/env/config"
)


func main() {
  c := &config.AppConfig{
    AppID:          "golang",
    Cluster:        "dev",
    IP:             "http://127.0.0.1:8080",
    NamespaceName:  "golang",
    IsBackupConfig: true,
    Secret:         "217f7c31263a421389fd4d2a66e4abd1",
  }


  //agollo.SetLogger(&DefaultLogger{})


  client, _ := agollo.StartWithConfig(func() (*config.AppConfig, error) {
    return c, nil
  })
  fmt.Println("初始化Apollo配置成功")


  //Use your apollo key to test
  cache := client.GetConfigCache(c.NamespaceName)
  value, _ := cache.Get("conf")
  fmt.Println(value)
}

 % go run learn/apollo/client.go
初始化Apollo配置成功
conf

接着测试下watch功能

package main


import (
  "fmt"
  "github.com/apolloconfig/agollo/v4"
  "github.com/apolloconfig/agollo/v4/env/config"
  "github.com/apolloconfig/agollo/v4/storage"
  "sync"
)


func main() {
  c := &config.AppConfig{
    AppID:          "golang",
    Cluster:        "dev",
    IP:             "http://127.0.0.1:8080",
    NamespaceName:  "golang",
    IsBackupConfig: false,
    Secret:         "217f7c31263a421389fd4d2a66e4abd1",
  }
  c2 := &CustomChangeListener{}
  c2.wg.Add(5)


  client,err:=agollo.StartWithConfig(func() (*config.AppConfig, error) {
    return c, nil
  })
  client.AddChangeListener(c2)




  fmt.Println("err:", err)


  c2.wg.Wait()
  writeConfig(c.NamespaceName,client)
}


func writeConfig(namespace string,client agollo.Client) {
  cache := client.GetConfigCache(namespace)
  cache.Range(func(key, value interface{}) bool {
    fmt.Println("key : ", key, ", value :", value)
    return true
  })
}
type CustomChangeListener struct {
  wg sync.WaitGroup
}


func (c *CustomChangeListener) OnChange(changeEvent *storage.ChangeEvent) {
  //write your code here
  fmt.Println(changeEvent.Changes)
  for key, value := range changeEvent.Changes {
    fmt.Println("change key : ", key, ", value :", value)
  }
  fmt.Println(changeEvent.Namespace)
  c.wg.Done()
}


func (c *CustomChangeListener) OnNewestChange(event *storage.FullChangeEvent) {
  //write your code here
}

% go run learn/apollo/listener/main.go
err: <nil>
map[conf:0xc00018a300]
change key :  conf , value : &{conf conf1 1}
golang
