golang计算M/M/s系统理论损失率并使用plot画图

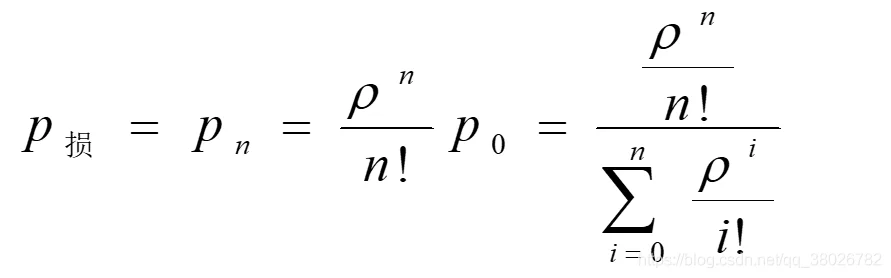

 理论损失率计算公式：M/M/n/0

golang代码

package main

import (
	"math"
	"gonum.org/v1/plot"
	"gonum.org/v1/plot/plotter"
	"gonum.org/v1/plot/plotutil"
	"gonum.org/v1/plot/vg"
	"fmt"
)

//输入lambda 和 miu 和服务台数，计算损失率
func calculatePLoss(Lambda,miu float64,n int) float64{
	rou := Lambda/miu
	rou_n := math.Pow(rou,float64(n))
	fac := factorial(n)
	var sum float64
	for i := 0; i <= n; i++ {
		sum += math.Pow(rou,float64(i))/float64(factorial(i))
	}
	return (rou_n/float64(fac))/sum
}
//计算阶乘
func factorial(n int) int{
	if n == 1|| n == 0{
		return 1
	}else{
		return n*factorial(n-1)
	}
}
func main(){
	//W自变量
	var F int = 1
	var W int = 1
	var lambda float64 = 2
	var miu float64 = 3
	var s string = fmt.Sprintf("lambda=%v, miu=%v\n F=1(solid), F=2(dashed), F=3(dotted)",lambda, miu)
	p, _ := plot.New()
	p.Title.Text = s
	p.X.Label.Text = "W"
	p.Y.Label.Text = "Loss Rate"
	points := plotter.XYs{
		{1.0, calculatePLoss(lambda/float64(F),miu,1*W)},
		{2.0, calculatePLoss(lambda/float64(F),miu,2*W)},
		{3.0, calculatePLoss(lambda/float64(F),miu,3*W)},
		{4.0, calculatePLoss(lambda/float64(F),miu,4*W)},
		{5.0, calculatePLoss(lambda/float64(F),miu,5*W)},
		{6.0, calculatePLoss(lambda/float64(F),miu,6*W)},
		{7.0, calculatePLoss(lambda/float64(F),miu,7*W)},
		{8.0, calculatePLoss(lambda/float64(F),miu,8*W)},
		{9.0, calculatePLoss(lambda/float64(F),miu,9*W)},
		{10.0, calculatePLoss(lambda/float64(F),miu,10*W)},
	}
	F = 2
	points2 := plotter.XYs{
		{1.0, calculatePLoss(lambda/float64(F),miu,1*W)},
		{2.0, calculatePLoss(lambda/float64(F),miu,2*W)},
		{3.0, calculatePLoss(lambda/float64(F),miu,3*W)},
		{4.0, calculatePLoss(lambda/float64(F),miu,4*W)},
		{5.0, calculatePLoss(lambda/float64(F),miu,5*W)},
		{6.0, calculatePLoss(lambda/float64(F),miu,6*W)},
		{7.0, calculatePLoss(lambda/float64(F),miu,7*W)},
		{8.0, calculatePLoss(lambda/float64(F),miu,8*W)},
		{9.0, calculatePLoss(lambda/float64(F),miu,9*W)},
		{10.0, calculatePLoss(lambda/float64(F),miu,10*W)},
	}
	F = 3
	points3 := plotter.XYs{
		{1.0, calculatePLoss(lambda/float64(F),miu,1*W)},
		{2.0, calculatePLoss(lambda/float64(F),miu,2*W)},
		{3.0, calculatePLoss(lambda/float64(F),miu,3*W)},
		{4.0, calculatePLoss(lambda/float64(F),miu,4*W)},
		{5.0, calculatePLoss(lambda/float64(F),miu,5*W)},
		{6.0, calculatePLoss(lambda/float64(F),miu,6*W)},
		{7.0, calculatePLoss(lambda/float64(F),miu,7*W)},
		{8.0, calculatePLoss(lambda/float64(F),miu,8*W)},
		{9.0, calculatePLoss(lambda/float64(F),miu,9*W)},
		{10.0, calculatePLoss(lambda/float64(F),miu,10*W)},
	}
	plotutil.AddLinePoints(p, points,points2,points3)
	p.Save(5*vg.Inch, 5*vg.Inch, "test1.png")

	F = 1
	for j :=1;j<=5;j++  {
		for i := 1; i<=5;i++  {
			temp := lambda/float64(i)
			fmt.Printf("F = %v, W = %v, LambdaSYS=%v,miuSYS=%v,rou=%v, Loss=%v\n",i,j,temp,miu,temp/miu,calculatePLoss(lambda/float64(i),miu,j))
		}

	}
}
